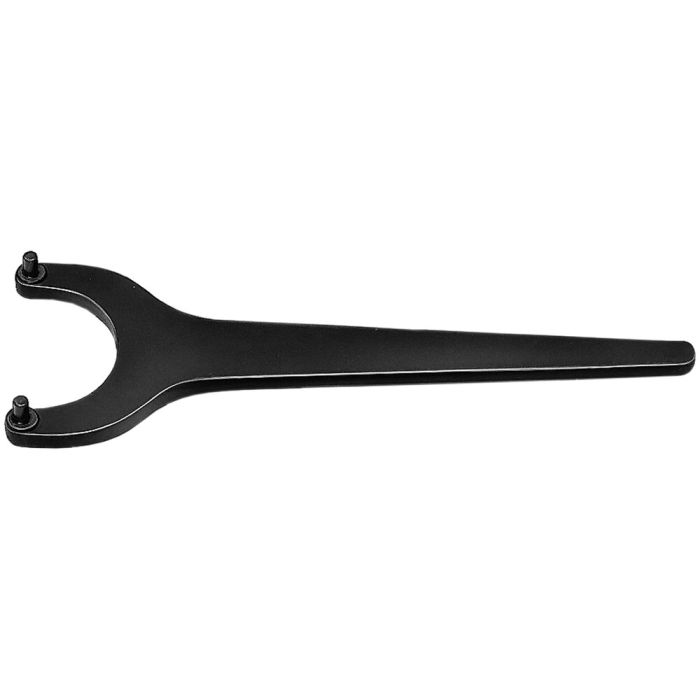

Wrench for 2 hole nuts
Blued, pin spacing 15 mm, ⌀ pin 3 mm
Order no.
44461
Application:
Sizes 13 and 15 for M8 and M10 two-hole nuts according to DIN 547.
Size 35 x 5 (order no. 44644) for flange nuts of angle grinders.
Note:
ØD Pin diameter = nominal dimension -0.1 mm; tolerance class h12
size 13 and 15 with riveted pins, without recess between the pins.
On request:
Zinc-plated on request.
* Size not included in DIN, dimensions similar to DIN
| Order no. | 44461 |
|---|---|
| Finishing | Blued |
| Pin spacing min. [mm] | 15 |
| Pin spacing max. [mm] | 15 |
| Pin diameter [mm] | 3 |
