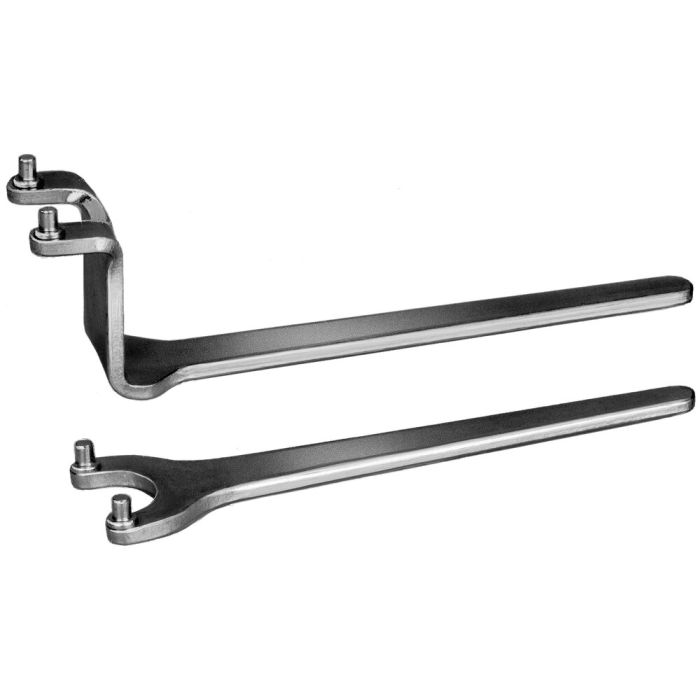

Wrench for 2 hole nuts
Steel zinc-plated, pin spacing 30 mm, ⌀ pin 4 mm, form A
Order no.
50997
Application:
Size 35 for flange nut DIN 44716-D of angle grinder DIN 44706 for clamping grinding and cutting-off wheels.
Note:
* Pin diameter = nominal diameter -0.1 mm (tolerance class h12)
* Size not included in DIN, dimensions similar to DIN
| Order no. | 50997 |
|---|---|
| Finishing | Zinc-plated |
| Pin spacing min. [mm] | 30 |
| Pin spacing max. [mm] | 30 |
| Pin diameter [mm] | 4 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
