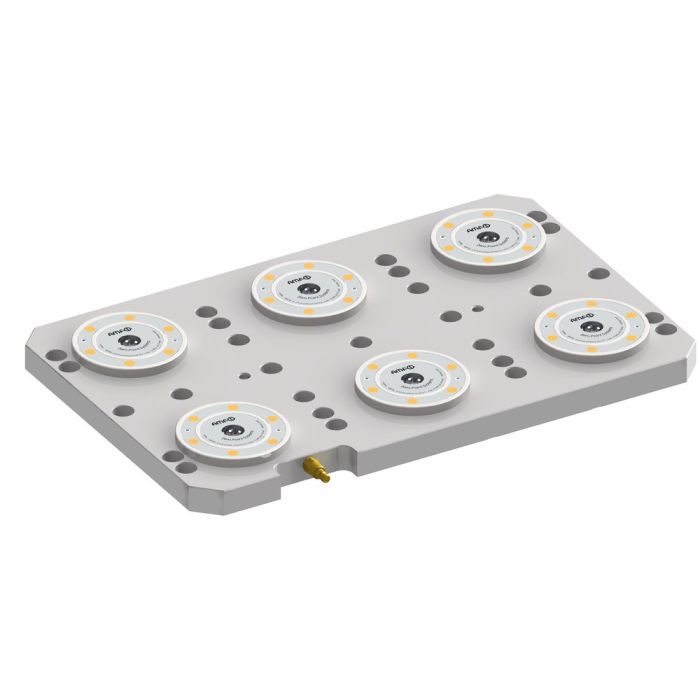

6-point clamping station
Pneumatic unlocking, size KP20.3
Order no.
550256
Design:
Pneumatic clamping station for setting time-optimised clamping on machine tables with groove spacing of 63, 100 and 125 mm. Fastening is via M12 socket head screws. At least two fitting bores are attached for alignment. The insertion dimension of the clamping modules is 200 mm. The pneumatic quick-coupler is premounted.
Note:
* Please observe the installation instructions.
We recommend a maintenance unit for operation of the clamping station. A matching product can be found in “Single and multiple clamping systems” under order number 301929.
Advantage:
- Low overall height
| Order no. | 550256 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 20 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 17 |
