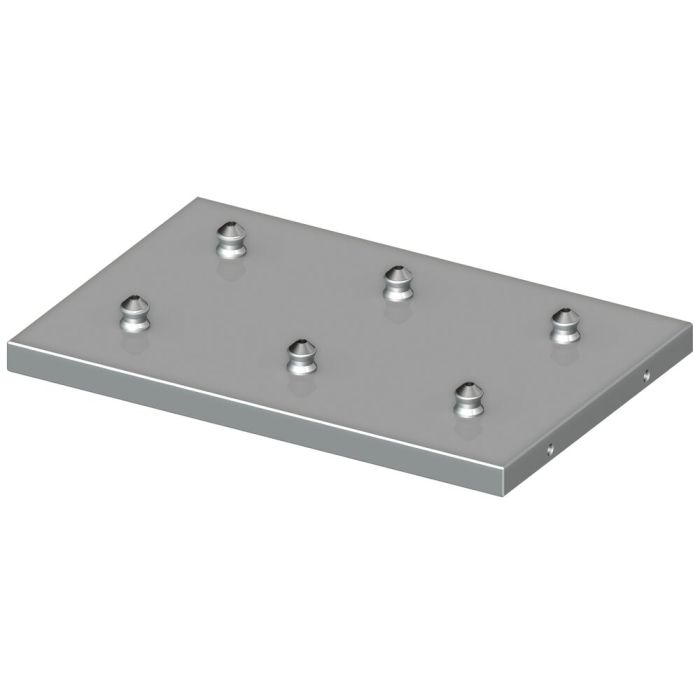

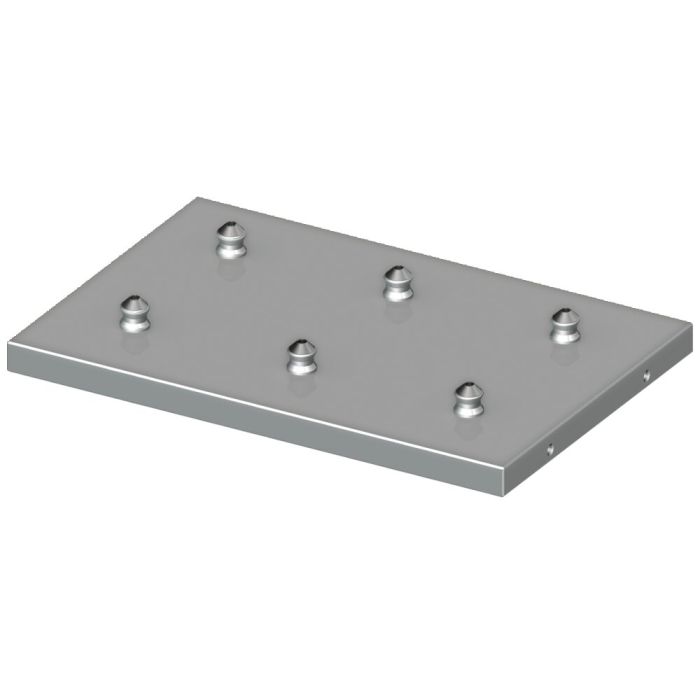

Fixture plate
Suitable for sextuple clamping station, size 20
Order no.
426791
Note:
On request, we can incorporate mounting holes according to your specifications in the change pallet.
On request:
Other dimensions, pitch spacings and number of equipped pull-studs.
| Order no. | 426791 |
|---|---|
| Product type | Quick-change pallets |
| Operating mode | Hydraulic, Pneumatic, Mechanical |
| Size clamping module | 20 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pull-stud size 20 for M10 and M12 engagement screw Nr. 303149 For clamping modules size 20, zero point pull-stud
- Pull-stud size 20 with colour coding for M12 engagement screw Nr. 430322 For clamping modules size 20, zero point pull-stud "Gold"
