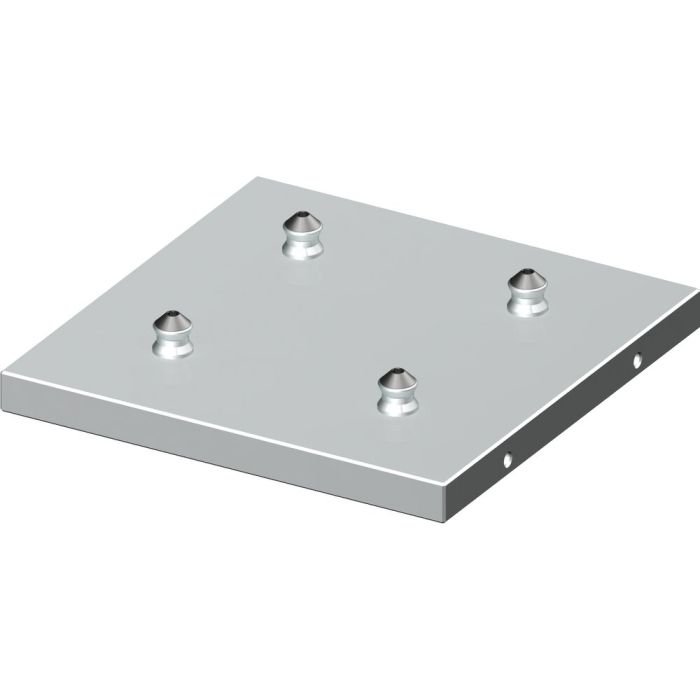

Fixture plate
Suitable for quadruple clamping station, size 20
Order no.
425033
Note:
Fastening bores for handles are attached to the end faces of the interchangeable pallets. See dimensions table L1 and G1. We can incorporate additional fastening bores according to your specifications in the change pallet on request.
On request:
Other dimensions, pitch spacings and number of equipped pull-studs.
| Order no. | 425033 |
|---|---|
| Product type | Quick-change pallets |
| Operating mode | Hydraulic, Pneumatic, Mechanical |
| Size clamping module | 20 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pull-stud size 20 for M10 and M12 engagement screw Nr. 303149 For clamping modules size 20, zero point pull-stud
- Pull-stud size 20 with colour coding for M12 engagement screw Nr. 430322 For clamping modules size 20, zero point pull-stud "Gold"
