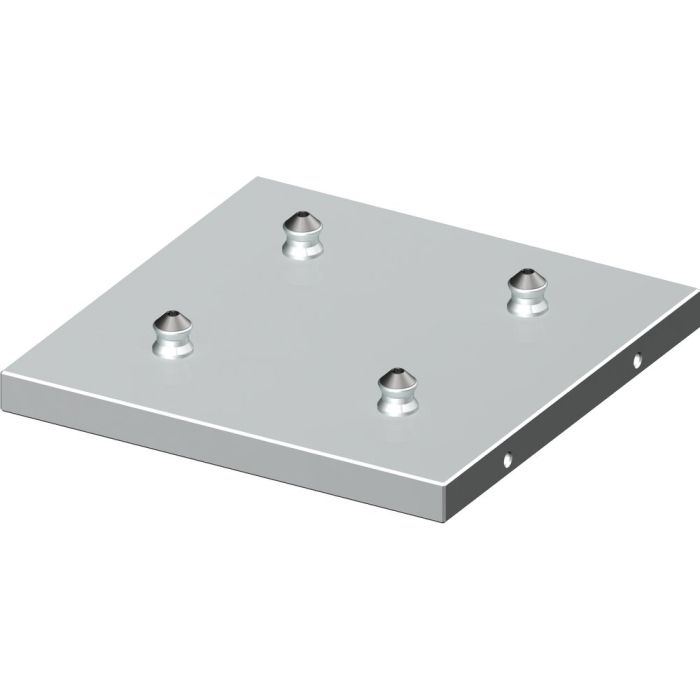

Fixture plate
Suitable for quadruple clamping station, size 40
Order no.
426809
Note:
Fastening bores for handles are attached to the end faces of the interchangeable pallets. See dimensions table L1 and G1. We can incorporate additional fastening bores according to your specifications in the change pallet on request.
On request:
Other dimensions, pitch spacings and number of equipped pull-studs.
| Order no. | 426809 |
|---|---|
| Product type | Quick-change pallets |
| Operating mode | Hydraulic, Pneumatic, Mechanical |
| Size clamping module | 40 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 40 for M16 engagement screw Nr. 303180 For clamping modules size 40, zero point pull-stud
