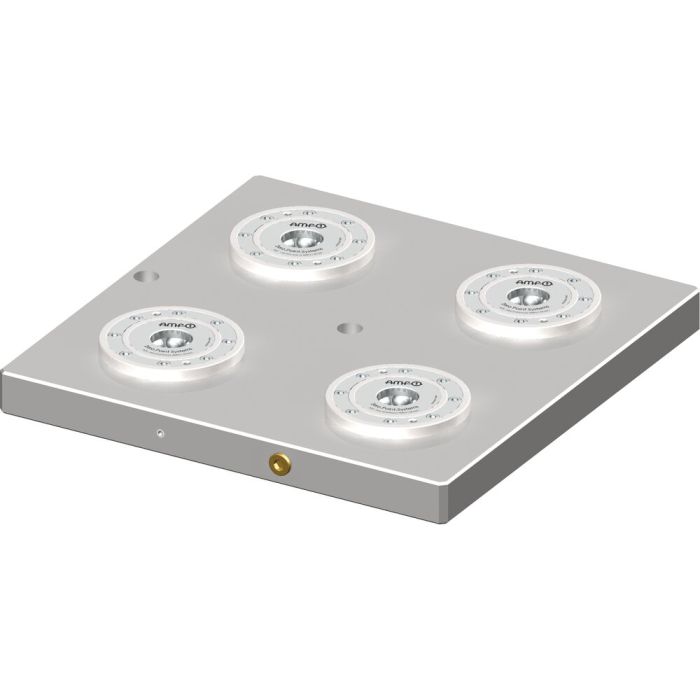

4-point clamping station
Hydraulic unlocking, size KH40
Order no.
303339
Note:
On request, we can incorporate fastening bores in the base plate according to your requirements.
The correct quick-release coupling is available under the order no.:
- 427872 for sleeve
- 427856 for plug
* Please observe the installation instructions.
| Order no. | 303339 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 40 |
| Holding force [kN] | 105 |
| Pull-in/locking force [kN] | 40 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Cover caps for clamping pallets Nr. 430165 For cylinder and positioning boreholes in clamping stations, size M12
- Pull-stud size 40 for M18 engagement screw Nr. 554942 For clamping modules size 40, zero point pull-stud
