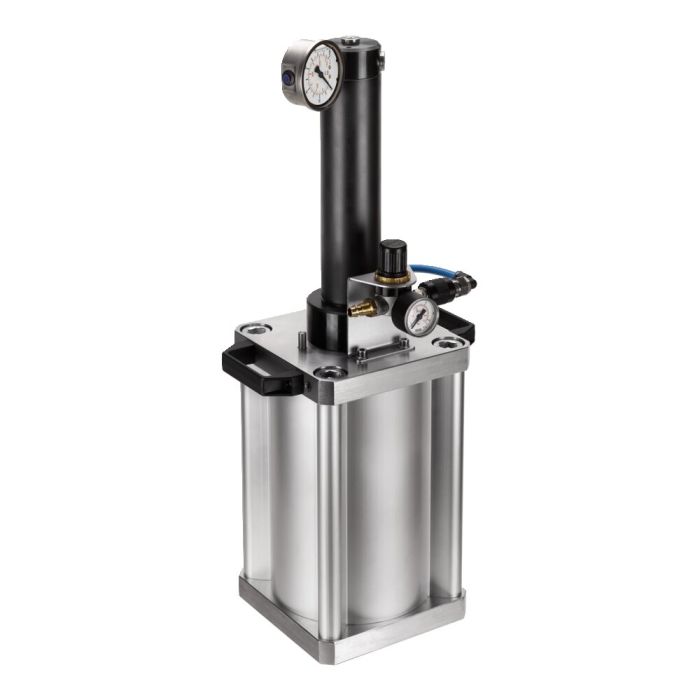

Pressure intensifier
Max. operating pressure 100 bar
Order no.
554493
Design:
Compact, air-pressure-operated pressure intensifier for single-acting hydraulic circuits. With pneumatic control unit for the hydraulic output pressure, pressure gauge and fill level indicator.
Application:
The pressure intensifier is used for opening for hydraulic clamping modules or hydraulic clamping stations.
On request:
- Pressure intensifier with enlarged oil volume
| Order no. | 554493 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hydraulic tube Nr. 558008 For reduced space conditions or small bending radius, max. operating pressure dyn. at +50°C 375 bar
- Shut-off valve Nr. 65326 For thread connection, max. operating pressure 500 bar, volume flow 18 l/min
