Air-hydraulic Pump
Design:

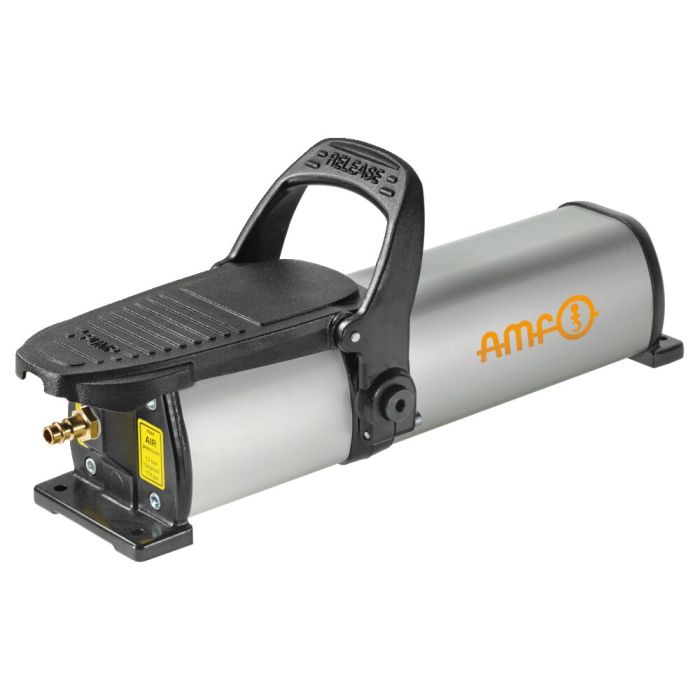

Compact, air-pressure-operated hydraulic intensification pump for single-acting circuits. The pump is fitted with an integrated safety valve that regulates the hydraulic output pressure. The safety valve is set in the factory to the max. operating pressure of 60 bar.
The extension element in the oil tank allows the pump to be adjusted horizontally and vertically.
Air connection thread: G1/4
Oil connection thread: G1/4
Application:
The air-hydraulic pump is used for opening for hydraulic clamping modules or hydraulic clamping stations.
Note:
The use of purified, lubricated compressed air is recommended for operation of the pump.
| Order no. | 426569 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Hydraulic tube Nr. 558008 For reduced space conditions or small bending radius, max. operating pressure dyn. at +50°C 375 bar
- Shut-off valve Nr. 65326 For thread connection, max. operating pressure 500 bar, volume flow 18 l/min
