Hose set, hydraulic
Max. operating pressure 100 bar
Order no.
430082
Design:

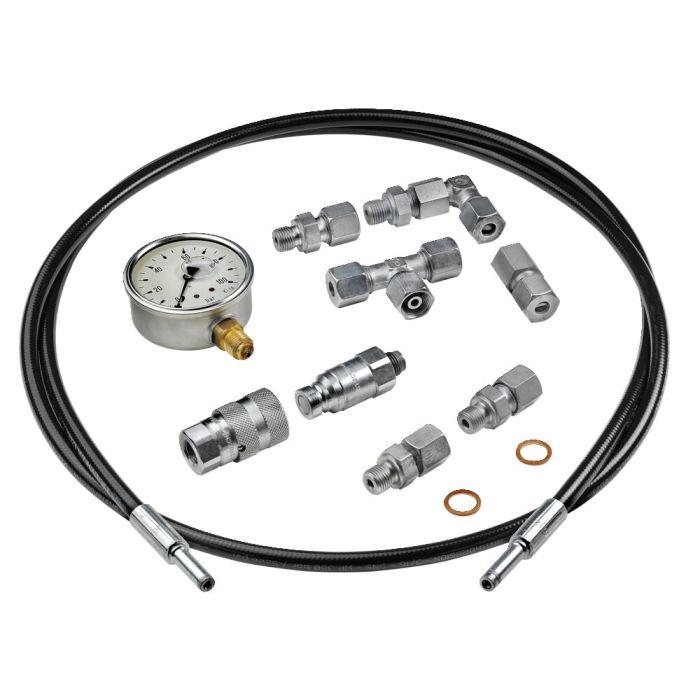

The connection set includes:
1x hydraulic connecting tube, length 2 m
2x straight screw pipe connections
2x straight screw-on fittings
1x T-screw-on fitting
1x pressure gauge 0-100 bar
1x straight female stud coupling
2x quick coupling sleeves
2x quick coupling plugs.
Application:
This set is used for the hydraulic connection of extension clamping modules or clamping stations for pressure generators such as pressure intensifiers or air-hydraulic pumps.
| Order no. | 430082 |
|---|---|
| Product type | Surface-mounting clamping modules, Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40 |
