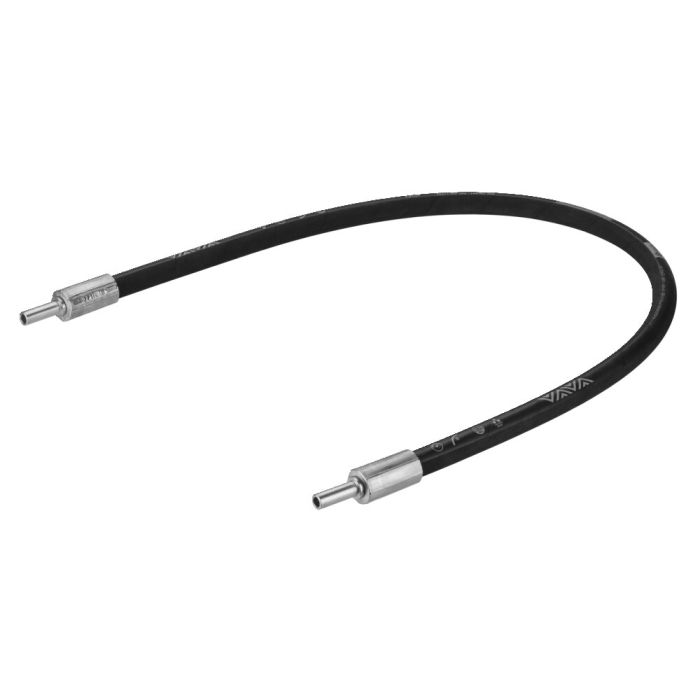

High Pressure Hose
Design:
Steel fitting, galvanized and passivated. Plastic hose with two steel wire braided inserts.
Application:
Insert hose and tighten with 1/4 turn maximum.
Note:
We recommend only using the 3-metre long high pressure hose for double-acting elements. These high pressure hoses can be used directly in pipe connections. The maximum service life must be 6 years but the maximum service life must not exceed 10 years. Date of manufacture (quarter/year) is printed on the hose. Serviceability must be assessed in accordance with established inspection criteria. See DIN 20066, section 5 for further details.
Bending radius = min. 30 mm
| Order no. | 63248 |
|---|---|
| Product type | High pressure hose and accessories |
| Max. operating pressure [bar] | 450 |
| Oil port | Pipe |
