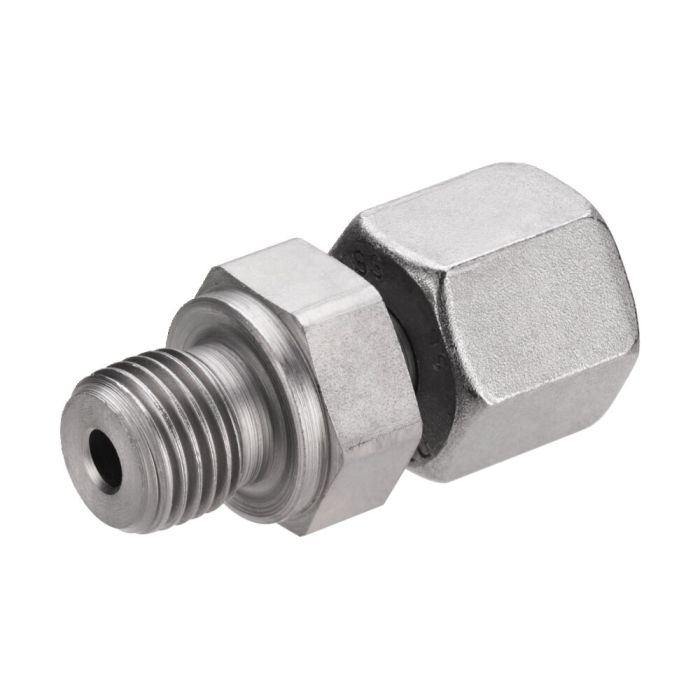

Screw-in fitting, straight, heavy-duty
For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
Order no.
160184
Design:
Pipe connection seal with cutting ring in acc. with ISO 8434-1 / DIN 2353. Sealing of external thread with sealing edge in acc. with DIN 3852-2 Form B. External thread can also be sealed with a copper seal in acc. with DIN 7603 Form A, making multiple use of the threaded bore possible.
Note:
Warning: Do not use Teflon tape! Copper seal 1/4 order no. 69823
| Order no. | 160184 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 630 |
| Oil port | Thread, Pipe |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Union nut with cutting ring, heavy series Nr. 184150 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
