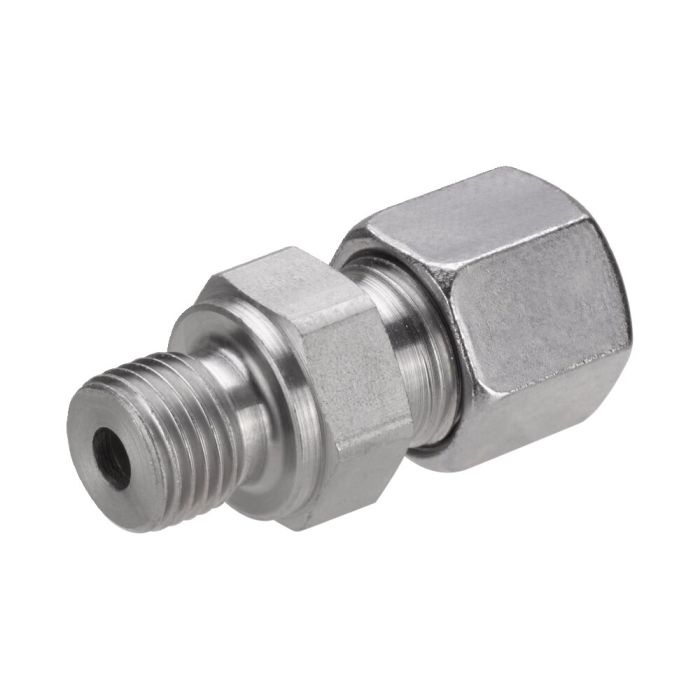

Screw-in fitting, straight, light duty
For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
Order no.
320747
Design:
Pipe connection seal with cutting ring in acc. with ISO 8434-1 / DIN 2353. Sealing of external thread with sealing edge in acc. with DIN 3852-2 Form B. External thread can also be sealed with a copper seal in acc. with DIN 7603 Form A, making multiple use of the threaded bore possible.
Note:
Warning: Do not use Teflon tape! Copper seal 1/8 order no. 69815
| Order no. | 320747 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 315 |
| Oil port | Thread, Pipe |
