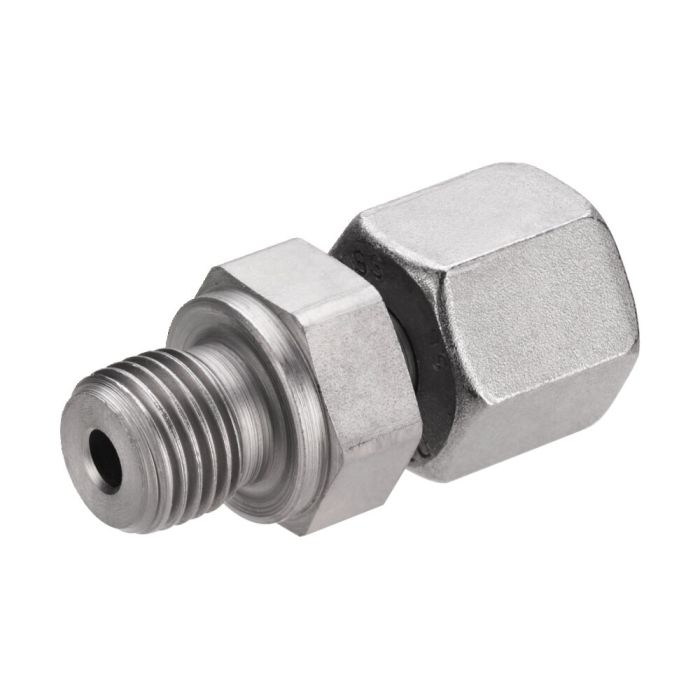

Screw-in fitting, straight, light duty
For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
Order no.
320689
Design:
Pipe connection seal with cutting ring in acc. with ISO 8434-1 / DIN 2353. Seal on external thread with edge seal ring in acc. with EN ISO 228-1.
Note:
Warning: Do not use Teflon tape!
| Order no. | 320689 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 315 |
| Oil port | Thread, Pipe |
