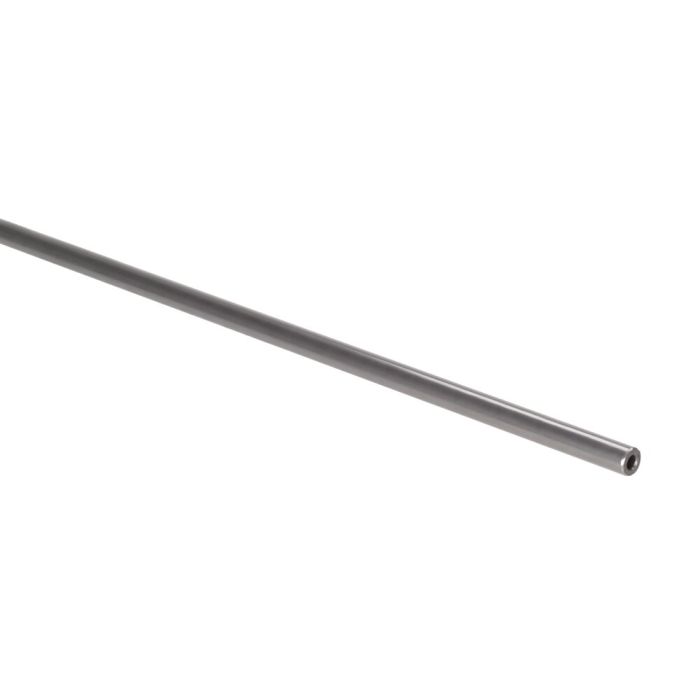

Hydraulic pipe
Max. operating pressure 315 bar, Ø 6x1,5 mm, length 2000 mm
Order no.
320861
Design:
Seamless hydraulic pipe, phosphated and oiled, from steel (fully killed) to DIN EN 10305, normalized, bright-annealed, cold-drawn.
| Order no. | 320861 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 315 |
| Oil port | Pipe |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw-in fitting, straight, light duty Nr. 320689 For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
- Adapter Plate, light duty Nr. 320846 For steel pipes, external ø 6 or 8 mm, internal ø 3 or 4 mm, with cutting ring, max. operating pressure 315 bar
