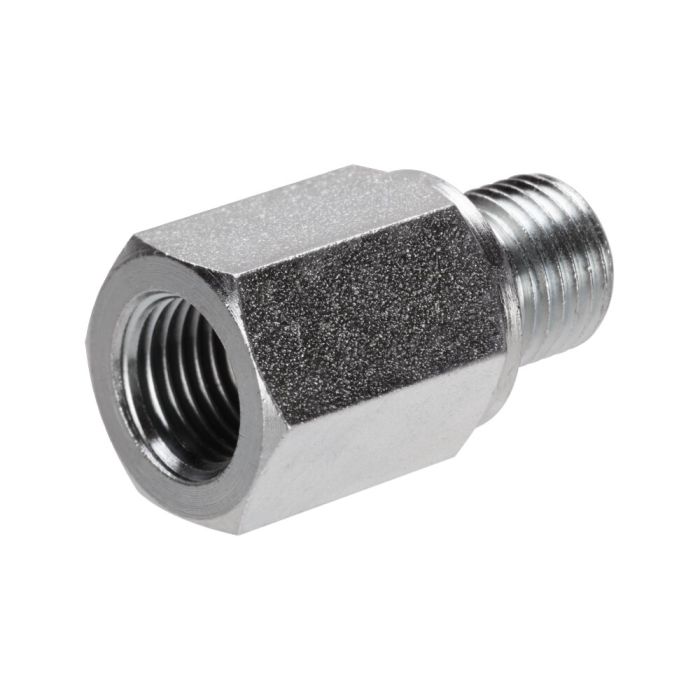

Adaptor Max. operating pressure 400 bar, inside Ø 4 mm, thread G1/4 to G1/4, length 59 mm
Order no. Article no. R L L1 E m dia. D SW Max. operating pressure Weight Availability Your Price 153288 6996-M16/M12x1,5 M16x1,5 41 11 11 M12x1,5 4 22 400 85
160093 6996-G1/4-G1/4-59 G1/4 59 12 13 G1/4 4 19 400 100
69609 6996-G1/4-M12x1,5 G1/4 26 12 12 M12x1,5 4 19 400 30
69625 6996-G1/4-G1/8 G1/4 31 8 17 G1/8 3 19 400 38
69641 6996-G1/4-G1/4-35 G1/4 35 12 17 G1/4 4 19 400 44
Design:
Note:
More Information Order no. 160093
