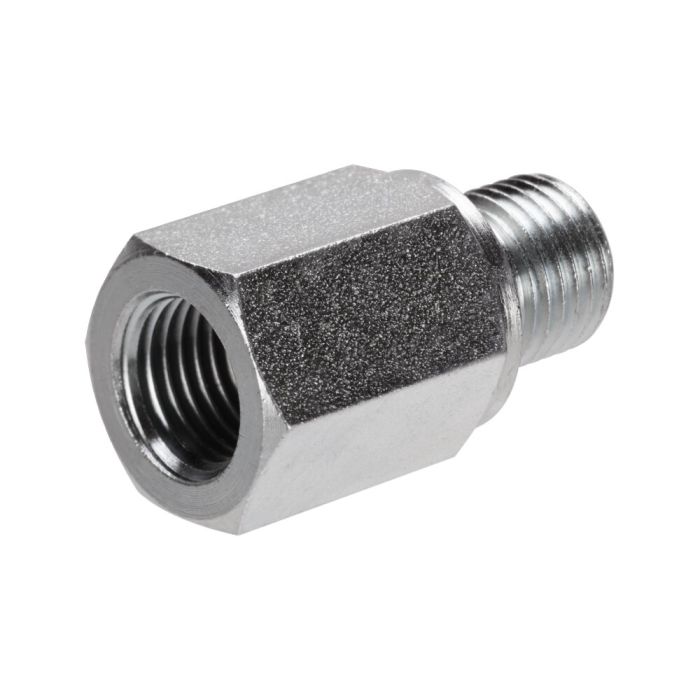

Adaptor
Max. operating pressure 400 bar, inside Ø 4 mm, thread M16x1,5 to M12x1,5
Order no.
153288
Design:
Seal of transitional journal (external thread) in acc. with DIN 3852 Form A with sealing ring in acc. with DIN 7603 Form A. Seal: at end of hose or pipe connection with 60° sealing cone in acc. with ISO 8434-6.
Note:
Warning: Do not use Teflon tape! Copper seal 1/8 order no. 69815 Copper seal 1/4 order no. 69823
| Order no. | 153288 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread |
