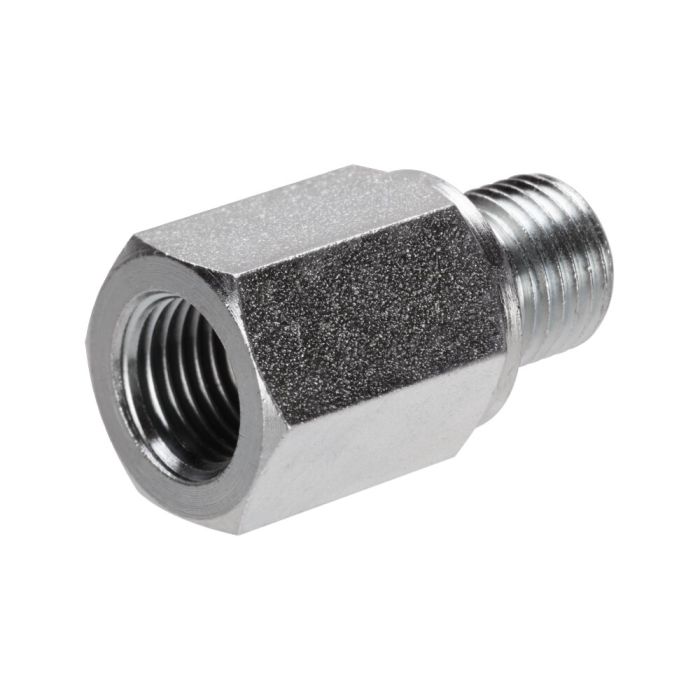

Adaptor
Max. operating pressure 400 bar, inside Ø 4 mm, thread G1/4 to G1/4, length 35 mm
Order no.
69641
Design:
Seal of transitional journal (external thread) in acc. with DIN 3852 Form A with sealing ring in acc. with DIN 7603 Form A. Seal: at end of hose or pipe connection with 60° sealing cone in acc. with ISO 8434-6.
Note:
Warning: Do not use Teflon tape! Copper seal 1/8 order no. 69815 Copper seal 1/4 order no. 69823
| Order no. | 69641 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw-in fitting, straight, heavy-duty Nr. 160184 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
- Fitting, angled, adjustable, heavy-duty Nr. 160200 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
