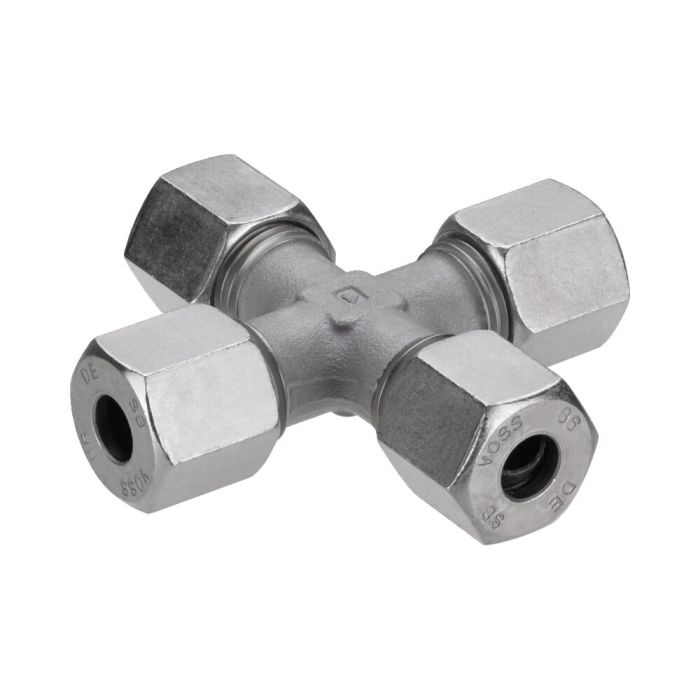

Cross-fitting, heavy-duty
For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
Order no.
170308
Design:
Pipe connection seal with cutting ring in acc. with ISO 8434-1 / DIN 2353.
Note:
Warning: Do not use Teflon tape!
| Order no. | 170308 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 630 |
| Oil port | Thread, Pipe |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Union nut with cutting ring, heavy series Nr. 184150 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
