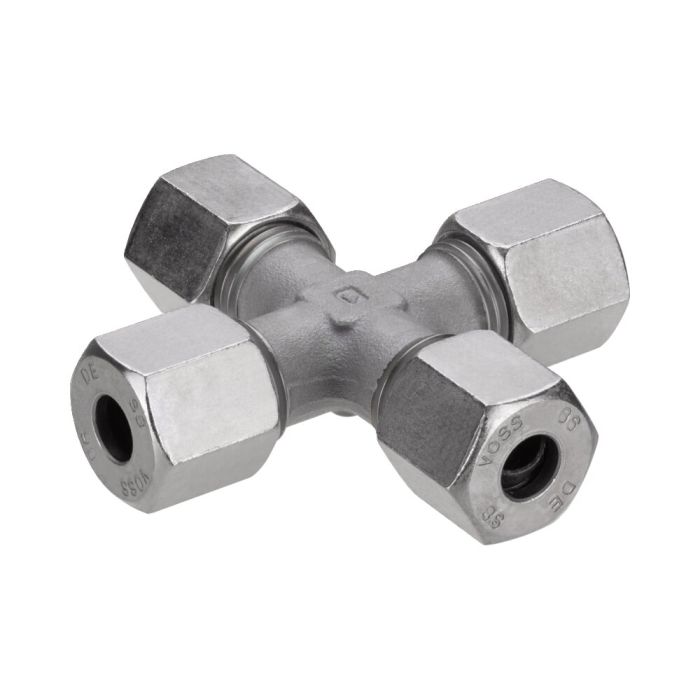

Cross-fitting, light duty
For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
Order no.
320804
Design:
Pipe connection seal with cutting ring in acc. with ISO 8434-1 / DIN 2353.
Note:
Warning: Do not use Teflon tape!
| Order no. | 320804 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 315 |
| Oil port | Thread, Pipe |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Union nut with cutting ring, light duty Nr. 313361 For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
Similar products
- T-fitting, light duty Nr. 320788 For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
- Bulkhead fitting, straight, light duty Nr. 320820 For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
- Adapter Plate, light duty Nr. 320846 For steel pipes, external ø 6 or 8 mm, internal ø 3 or 4 mm, with cutting ring, max. operating pressure 315 bar
- Screw-in fitting, straight, light duty Nr. 320689 For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
- Fitting, angled, light duty Nr. 320762 For steel tubes with outer diameter 6 mm and internal diameter 3 mm, with olive ring, max. operating pressure 315 bar
- Cross-fitting, heavy-duty Nr. 170308 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
