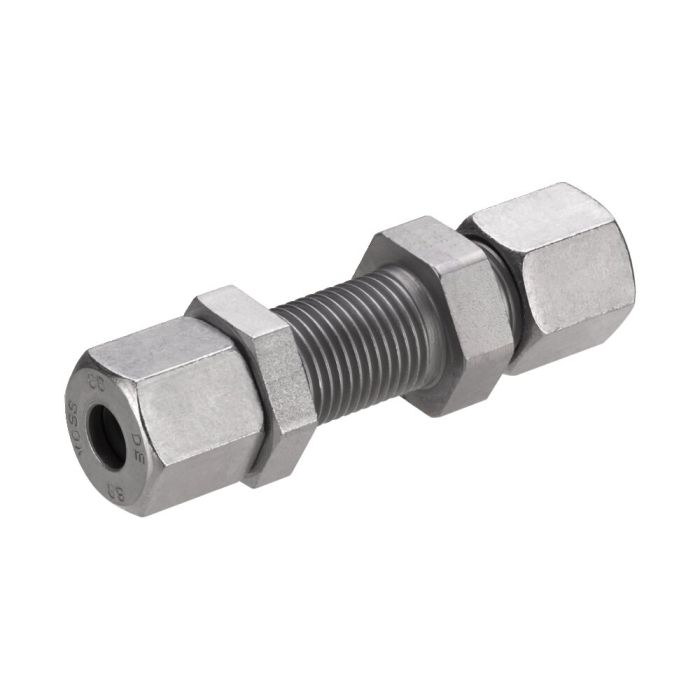

Bulkhead fitting, straight, heavy-duty
For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
Order no.
131631
Design:
Pipe connection seal in acc. with ISO 8434-1 / DIN 2353.
Note:
Warning: Do not use Teflon tape!
| Order no. | 131631 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 800 |
| Oil port | Thread, Pipe |
