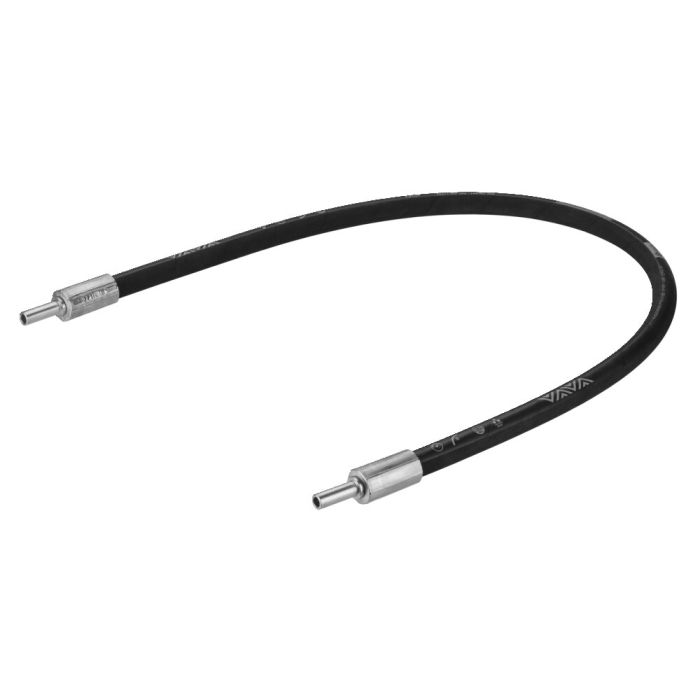

High Pressure Hose
Design:
Steel fitting, galvanized and passivated. Plastic hose with two steel wire braided inserts.
Application:
Insert hose and tighten with 1/4 turn maximum.
Note:
We recommend only using the 3-metre long high pressure hose for double-acting elements. These high pressure hoses can be used directly in pipe connections. The maximum service life must be 6 years but the maximum service life must not exceed 10 years. Date of manufacture (quarter/year) is printed on the hose. Serviceability must be assessed in accordance with established inspection criteria. See DIN 20066, section 5 for further details.
Bending radius = min. 30 mm
| Order no. | 63198 |
|---|---|
| Product type | High pressure hose and accessories |
| Max. operating pressure [bar] | 450 |
| Oil port | Pipe |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Screw-in fitting, straight, heavy-duty Nr. 160184 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
- Screw-up fitting, straight, heavy-duty Nr. 160192 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
- Fitting, angled, heavy-duty Nr. 160366 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
- T-fitting, heavy-duty Nr. 170258 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
- Cross-fitting, heavy-duty Nr. 170308 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
- Bulkhead fitting, straight, heavy-duty Nr. 131631 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
- High Pressure Hose with steel-wire interlace Nr. 68551 For thread connection, max. operating pressure 500 bar, length 300 mm
