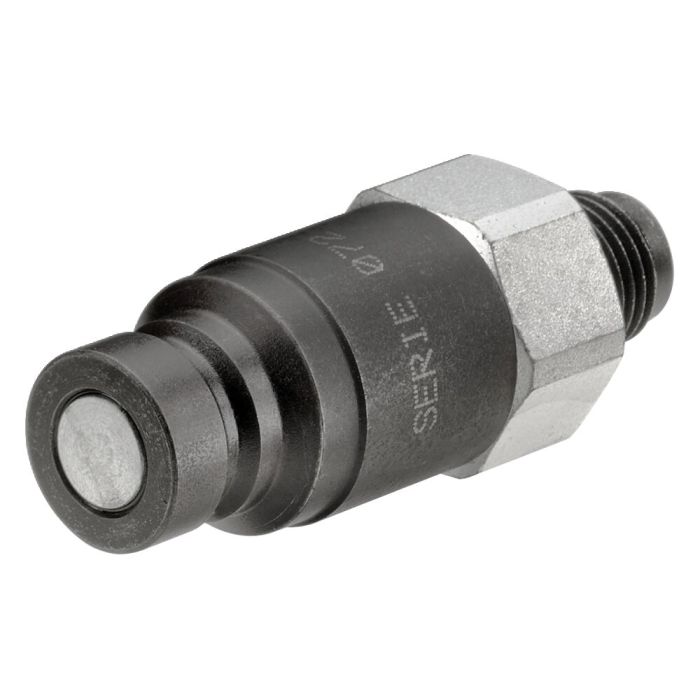

Quick coupling flat-face G1/4
Max. operating pressure 300 bar, connector
Order no.
427856
Application:
Since the clamping modules after blow-off of the opening pressure are mechanically locked, the hose is then uncoupled by means of the quick couplings. The advantage of this is that there are no interfering lines.
Note:
Flat-sealing quick coupling with internal thread G1/4. A threaded stud is supplied for external thread G1/4. A copper sealing ring is supplied as standard.
| Order no. | 427856 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Hydraulic tube Nr. 558008 For reduced space conditions or small bending radius, max. operating pressure dyn. at +50°C 375 bar
