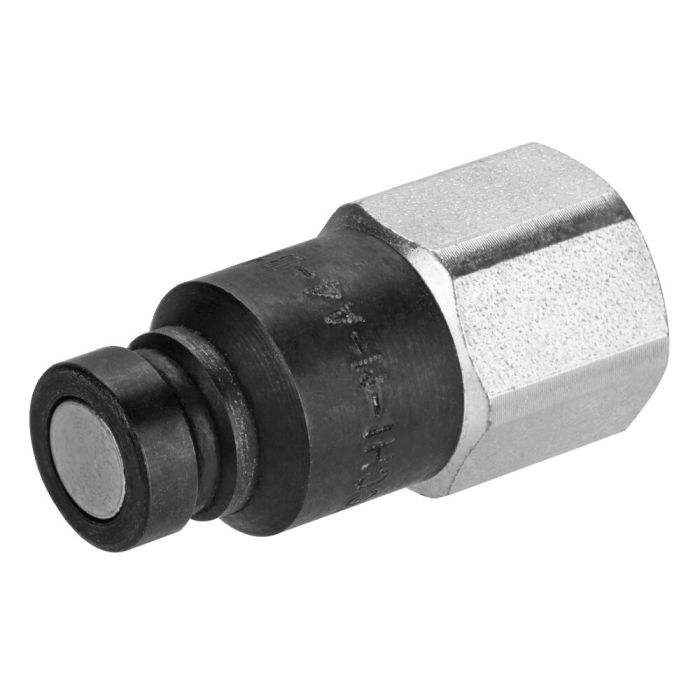

Quick coupling "flat-face" G1/8
Max. operating pressure 420 bar, connector
Order no.
558043
Application:
Since the clamping modules after blow-off of the opening pressure are mechanically locked, the hose is then uncoupled by means of the quick couplings. The advantage of this is that there are no interfering lines.
Note:
Flat-sealing quick coupling with internal thread G1/8.
Adapters from internal to external thread and copper sealing rings are not supplied as standard and must be ordered separately.
G1/8 to G1/8: Order no. 558045
G1/8 to G1/4: Order no. 558050
Copper sealing ring: Order no. 69815
| Order no. | 558043 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Adapter with external thread Nr. 558045 For adaptation of hydraulic connection components, connection G1/8
- Hydraulic tube Nr. 558008 For reduced space conditions or small bending radius, max. operating pressure dyn. at +50°C 375 bar
