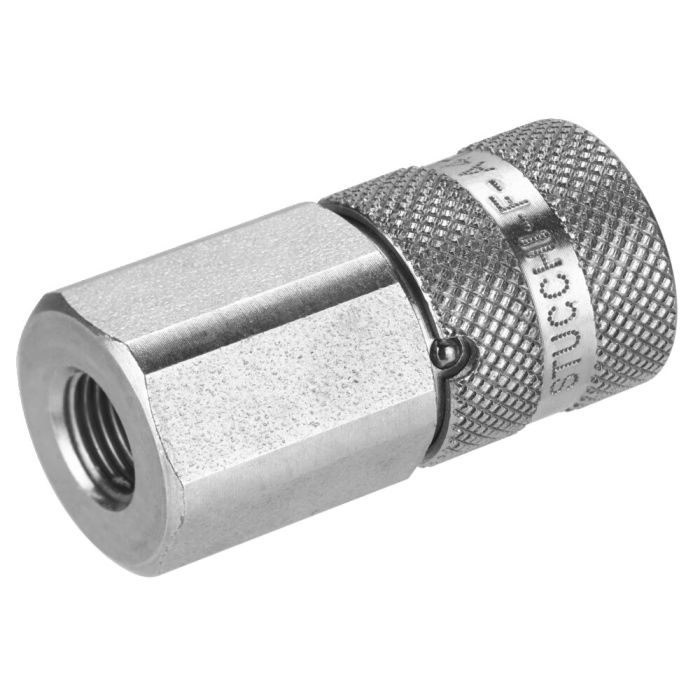

Quick coupling "flat-face" G1/8
Max. operating pressure 420 bar, sleeve
Order no.
558044
Application:
Since the clamping modules after blow-off of the opening pressure are mechanically locked, the hose is then uncoupled by means of the quick couplings. The advantage of this is that there are no interfering lines.
Note:
Flat-sealing quick coupling with internal thread G1/8.
Adapters from internal to external thread and copper sealing rings are not supplied as standard and must be ordered separately.
G1/8 to G1/8: Order no. 558045
G1/8 to G1/4: Order no. 558050
Copper sealing ring: Order no. 69815
| Order no. | 558044 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40 |
