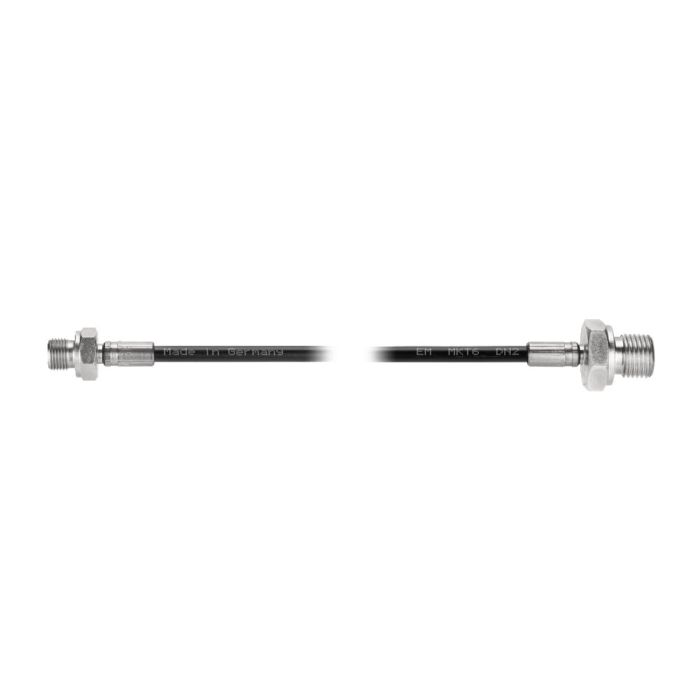

Hydraulic tube
For reduced space conditions or small bending radius, max. operating pressure dyn. at +50°C 375 bar
Order no.
558008
Design:
Steel fitting, galvanized and passivated. Hose of synthetic material with high tensile brassed steel-wire braid.
Application:
Connection and installation of hydraulic zero-point clamping systems under reduced space conditions or small bending radius.
Note:
The period of use of a hydraulic hose, including any storage period, should not exceed six years. The serviceability must be assessed according to established inspection criteria. See DIN 20066, section 5 for further details.
| Order no. | 558008 |
|---|---|
| Product type | Installation clamping modules, Surface-mounting clamping modules, Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 5, 10, 20, 40 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Adapter with external thread Nr. 558045 For adaptation of hydraulic connection components, connection G1/8
