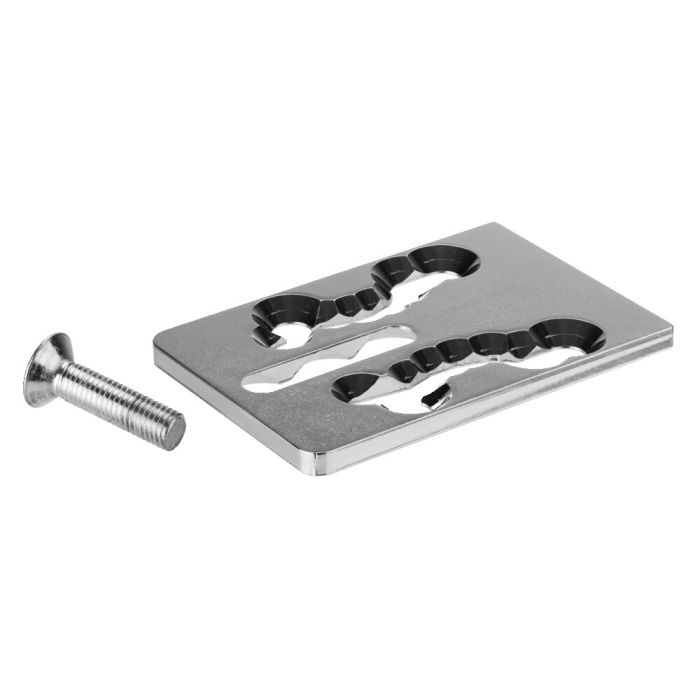

Adapter plate, angular
For fastening on perforated tables, size 1, flat-head screw DIN 7991 M8x35, measures 93x62 mm
Order no.
564129
Note:
The adapter plate is fastened on the perforated table using the corresponding clamping bolt.
The toggle clamp is attached on the adapter by flat-head screws from below. For this purpose, select the required mounting kit 6878B according to the toggle clamp sizes.
| Order no. | 564129 |
|---|---|
| Product type | Vertical toggle clamp, Horizontal toggle clamp |
| Größe Schnellspanner | , 1, 2, 3, 4, 5, 8, 6, 7, 20, 50, 70 |
