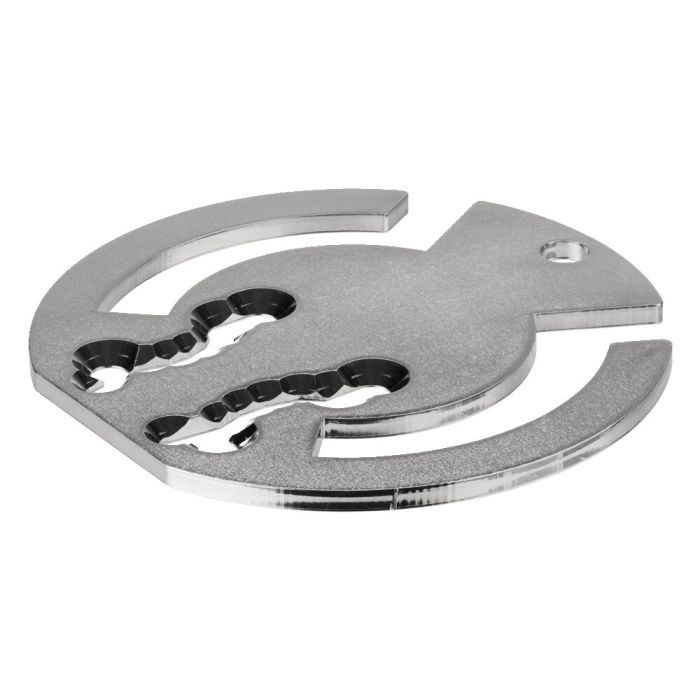

Adapter plate, round
For fastening on perforated tables, size 1, Ø 145 mm
Order no.
564130
Note:
To fix the adapter plate round with the clamping bolts 6878K on the perforated table, the mounting kit discs, order no. 564139 are required.
The toggle clamp is attached on the adapter plate by flat-head screws from below. For this purpose, the mounting kit 6878B according to the toggle clamp sizes is required.
| Order no. | 564130 |
|---|---|
| Product type | Vertical toggle clamp, Horizontal toggle clamp |
| Größe Schnellspanner | , 1, 2, 3, 4, 5, 8, 6, 7, 20, 50, 70 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Vertical toggle clamp with red handle Nr. 90035 With open clamping arm and horizontal base, size 3, max. clamping force 2,5 kN
- Mounting kit, disc Nr. 564139 For adapter plate round 6878AR, cylinder screw ISO 4762 4762 M8x50, Ø 40 mm
Similar products
- Adapter plate, angular Nr. 564129 For fastening on perforated tables, size 1, flat-head screw DIN 7991 M8x35, measures 93x62 mm
