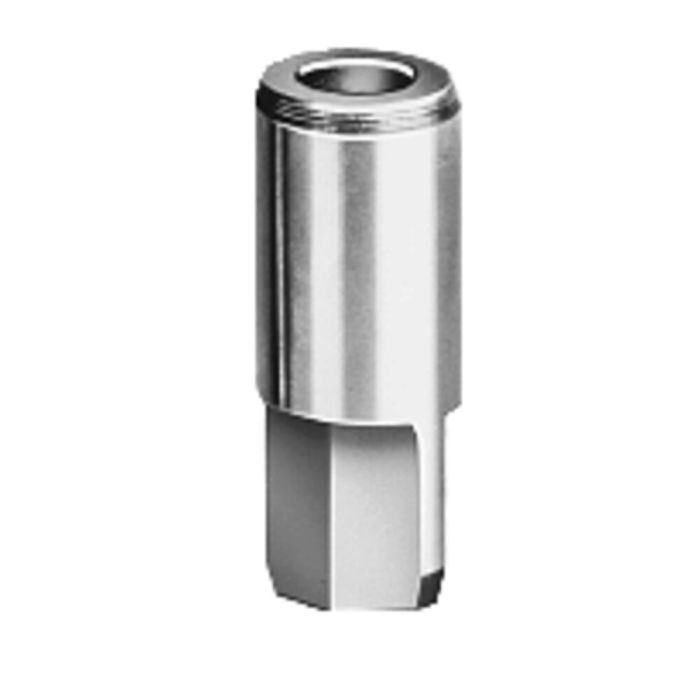

Alignment pin, diamond section
For aligning the basic model on the machine table, dia. pin 25 mm, thread M16
Order no.
89003
Application:
These alignment pins are used in alignment holes in a machine table for aligning clamping pallets, angles and columns.
| Order no. | 89003 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Similar products
- Alignment pin for groove Nr. 78865 For positioning the alignment hole 6361 & 6362 & 6366 & 6367 & 6364 on machine pallets with T-groove, dia. pin 25 mm, slot 22 mm
