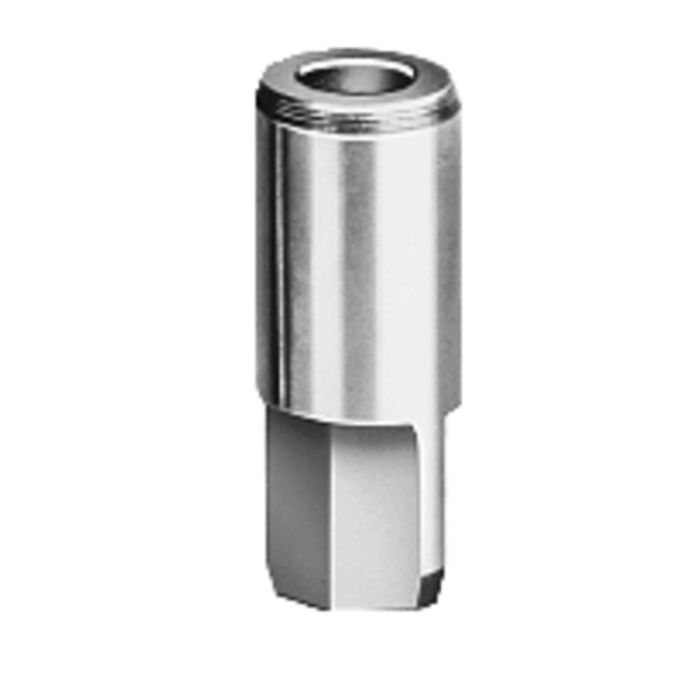

Alignment pin, diamond section
For aligning the basic model on the machine table, dia. pin 20 mm, thread M10
Order no.
89961
Application:
These alignment pins are used in alignment holes in a machine table for aligning clamping pallets, angles and columns.
| Order no. | 89961 |
|---|
