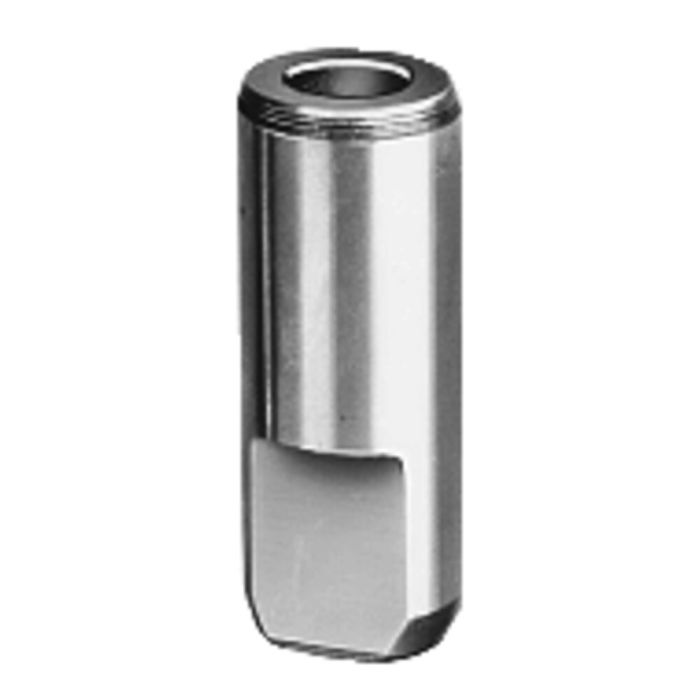

Alignment pin for groove
For positioning the alignment hole 6361 & 6362 & 6366 & 6367 & 6364 on machine pallets with T-groove, dia. pin 20 mm, slot 18 mm
Order no.
57158
Application:
For positioning the alignment hole - clamping pallet No. 6361 - clamping angle No. 6362, No. 6366 and No. 6367 - clamping column No. 6364 on DIN machine pallets with T-groove.
| Order no. | 57158 |
|---|
