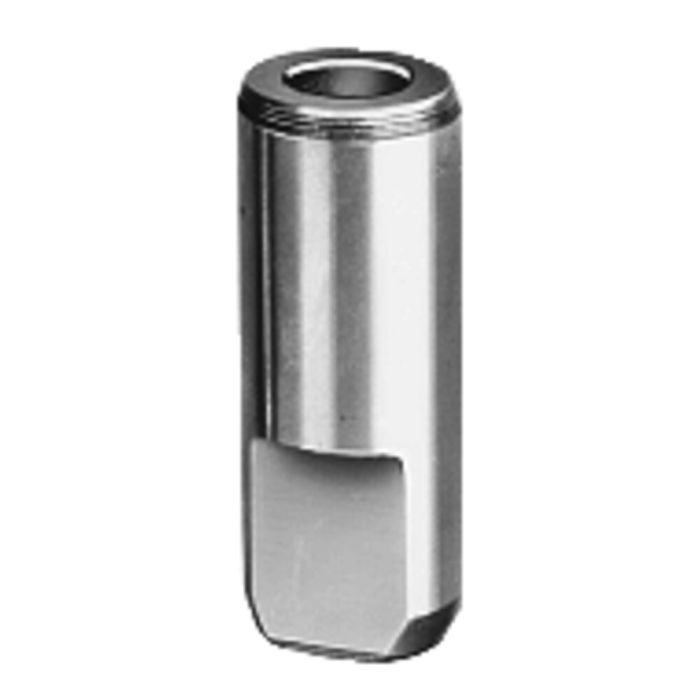

Alignment pin for groove
For positioning the alignment hole 6361 & 6362 & 6366 & 6367 & 6364 on machine pallets with T-groove, dia. pin 25 mm, slot 18 mm
Order no.
78840
Application:
For positioning the alignment hole - clamping pallet No. 6361 - clamping angle No. 6362, No. 6366 and No. 6367 - clamping column No. 6364 on DIN machine pallets with T-groove.
| Order no. | 78840 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Similar products
- Alignment pin, reduced Nr. 78790 For positioning the alignment hole 6362 and 6361, dia. pin 12 mm, fits special pallet
- Cylindrical dowel with female thread Nr. 136903 For aligning the basic model on the machine table, dia. pin 20 mm, thread M10
