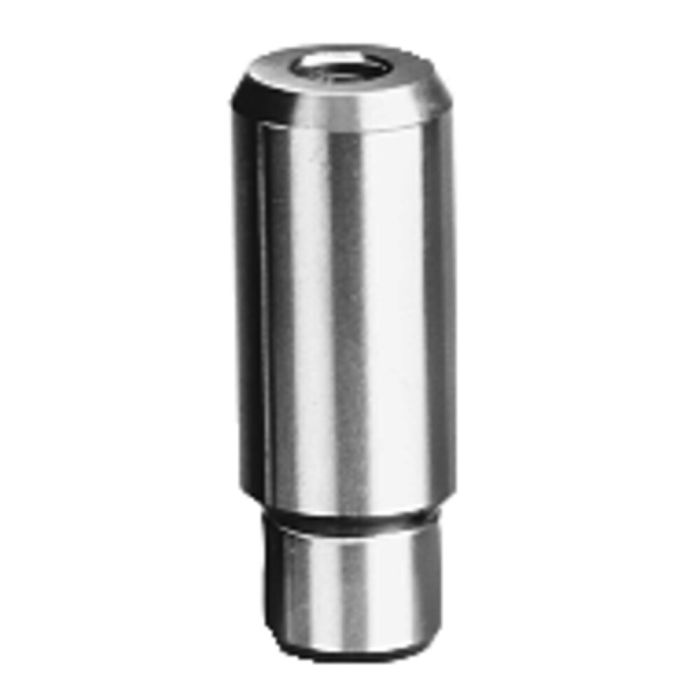

Alignment pin, reduced
For positioning the alignment hole 6362 and 6361, dia. pin 12 mm, fits special pallet
Order no.
78790
Application:
The centring pin is used, in the centre hole of machine tables, for positioning clamping pallets 6361 and aluminium angles 6362.
| Order no. | 78790 |
|---|
