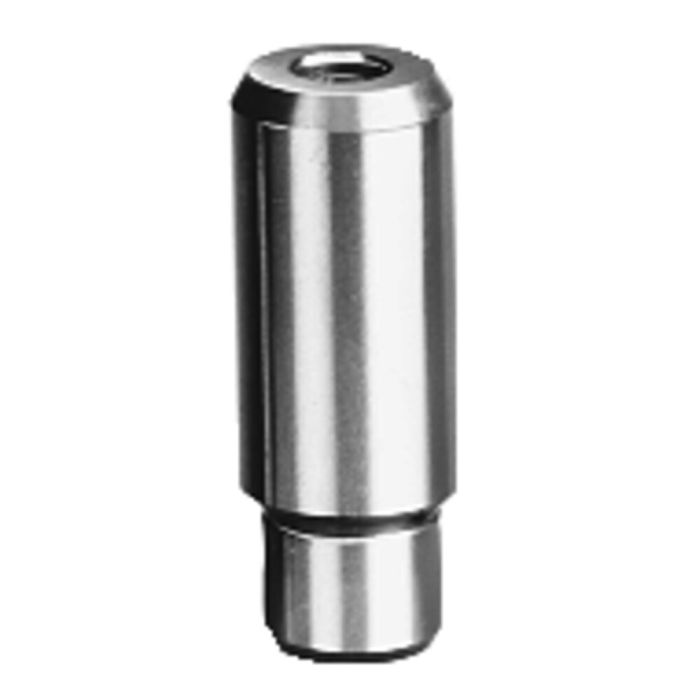

Alignment pin, reduced
For positioning the alignment hole 6362 and 6361, dia. pin 22 mm, fits construction size 16
Order no.
78816
Application:
The centring pin is used, in the centre hole of machine tables, for positioning clamping pallets 6361 and aluminium angles 6362.
| Order no. | 78816 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
- Alignment pin for groove Nr. 78840 For positioning the alignment hole 6361 & 6362 & 6366 & 6367 & 6364 on machine pallets with T-groove, dia. pin 25 mm, slot 18 mm
- Alignment pin, diamond section Nr. 89003 For aligning the basic model on the machine table, dia. pin 25 mm, thread M16
