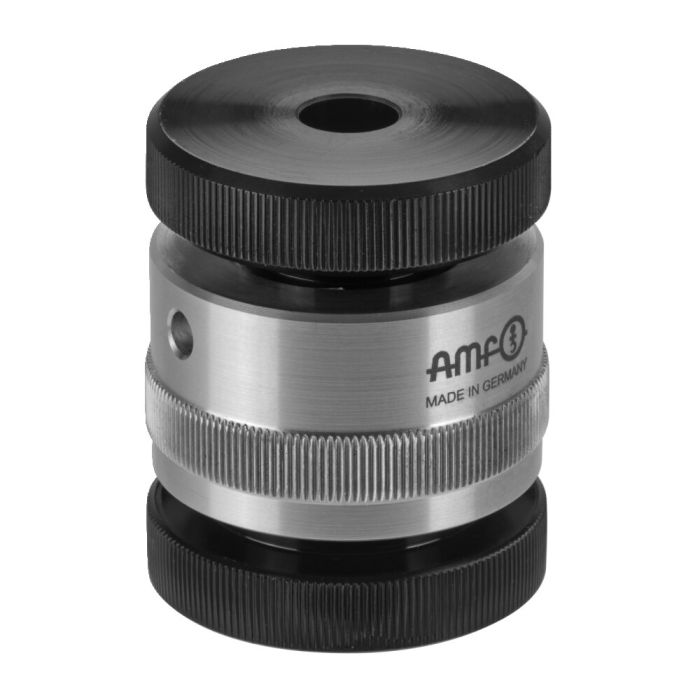

Aluminium screw jack with magnetic base
Size 62, centring hole Ø12 mm / M10, height 52-62 mm, ⌀ 50 mm
Order no.
75804
Application:
AMF screw jacks with magnetic base are designed for horizontal and vertical application. The permanent magnet allows permanent and exact positioning of the workpiece in a vertical position.
Note:
F max.* until max. 350 mm total height ensured. In addition, there is a risk of buckling.
Suitable attachments: no. 6440, 6440G, 6441, 6442, 6442G/M10, 6443/14 and 6445
Suitable support: no. 6401MF, 6401AF, 6400FB, 6400FY
Do not adjust screw jack under load!
Advantage:
Modular design with aluminium spacer elements 6401Z possible.
| Order no. | 75804 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 52 |
| Max. height [mm] | 62 |
| Max. support force [kN] | 30 |
| Special features | With magnetic base |
