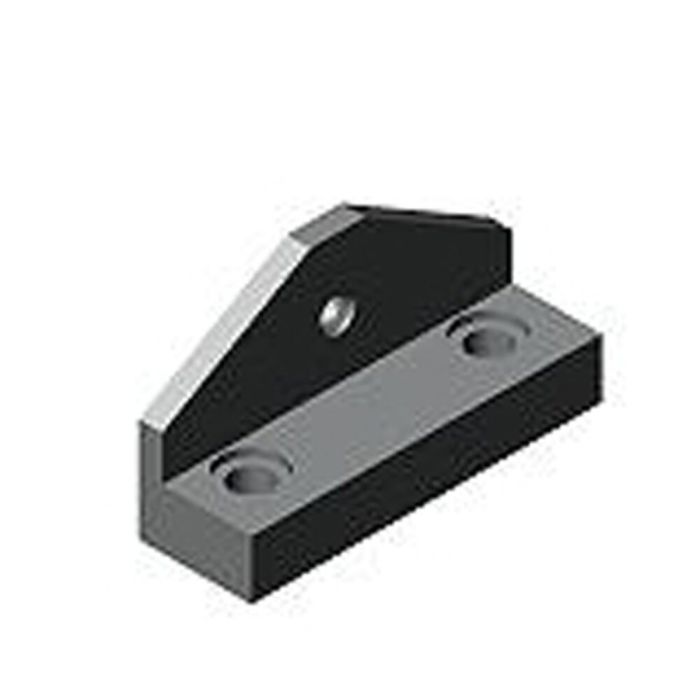

Angle block, 120°, narrow, double-sided

Support height 72,17 mm, dia. drilling 22 mm, grid 2x50 mm

Order no.

300160

Order no.	b	B1	b2	E	F	F1	H2	H3	L	L1	L2	L3	m	dia. S	dia. S1
300160	48	24	10	13	22	25	80	44	148	24	50	50	M16	17	26

Note:
Please also see chain clamping set No. 6540.

More Information
Order no.	300160

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Angle block, 120° Nr. 79178 Support height 72,17 mm, dia. drilling 22 mm, grid 2x50 mm

Wish List Compare

Your price:

Order no.	Article no.	dia. D F7	Support height (at D1=50) H ±0.01	2R ±0.01	Weight [g]	Availability	Your Price
300160	6363-16-049-1	22	72,17	100	2960
