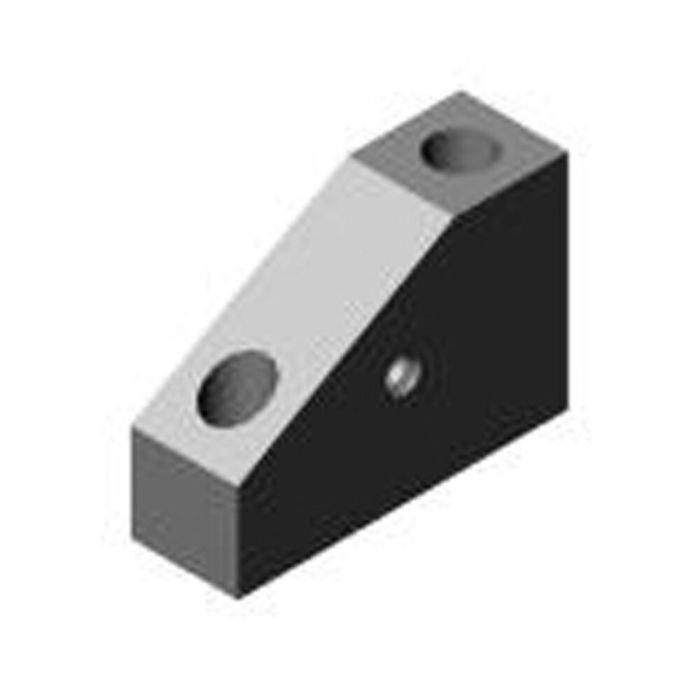

Angle block, 120°

Support height 72,17 mm, dia. drilling 22 mm, grid 2x50 mm

Order no.

79178

Order no.	Article no.	dia. D F7	Support height (at D1=50) H ±0.01	2R ±0.01	Weight [g]
79178	6363-16-043-1	22	72,17	100	3700
87544	6363-12-043-1	16	63,51	80	1940

Order no.	b	B1	E	F	H2	H3	L	L1	L2	L3	m	dia. S	dia. S1
79178	48	24	13	30	100	44	148	24	50	50	M16	17	26
87544	38	19	10	25	80	35	118	19	40	40	M12	13	20

Note:
please also see chain clamping set No. 6540.
