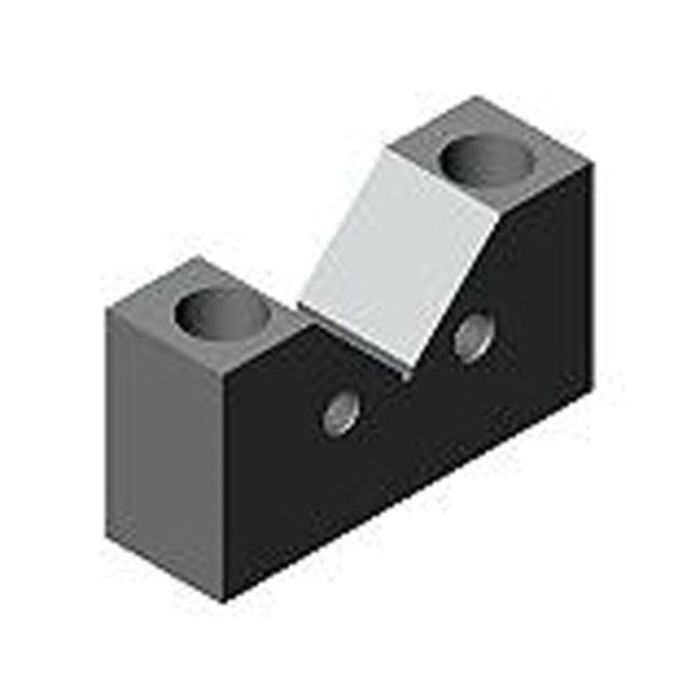

V-block, 90°

Support height D1/2xroot(2)+39,65 mm, dia. drilling 22 mm, grid 2x50 mm

Order no.

79152

Order no.	Article no.	dia. D F7	Support height H ±0.01	2R ±0.01	Weight [g]
79145	6363-12-040	16	D1/√(2)+31,37	80	1300
79152	6363-16-040	22	D1/√(2)+39,65	100	2800

Order no.	b	B1	D1	E	F	H2	L	L2	L3	m	dia. S	dia. S1
79145	34	19	8-80	10	44	60	110	40	30	M12	13	20
79152	44	24	10-100	13	54	75	140	50	40	M16	17	26

Note:
Please also see chain clamping set No. 6540.
