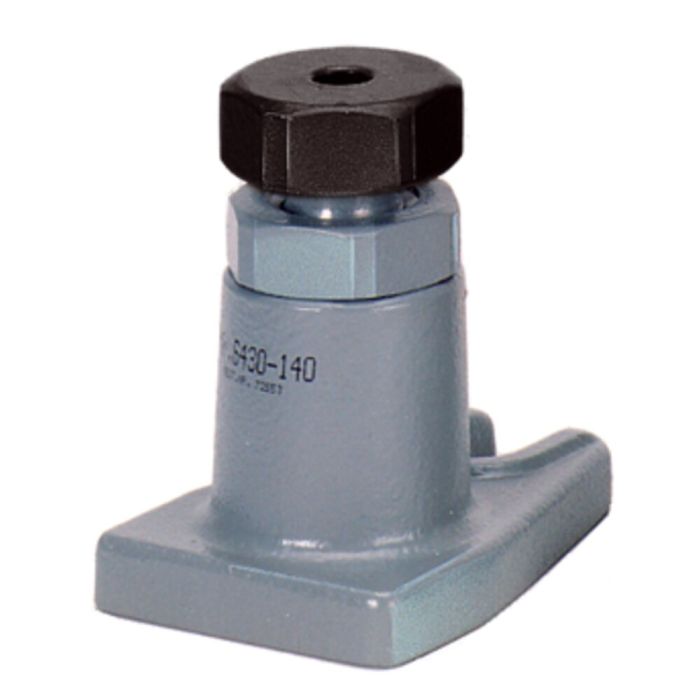

Atlas screw jack with counter nut
Size 140, centring hole Ø12 mm, height 100-140 mm, max. clamping force 60 kN, width 75 mm, length 110 mm
Order no.
72553
Note:
When using clamps DIN 6315B, 6315C and no. 6315GN with slot-sizes above 26 mm we recommend the use of locating pad no. 6443 for safety. Suitable pads are no. 6440, 6441, 6442, 6443 and 6445.
Do not adjust screw jack under load!
| Order no. | 72553 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 100 |
| Max. height [mm] | 140 |
| Max. support force [kN] | 60 |
