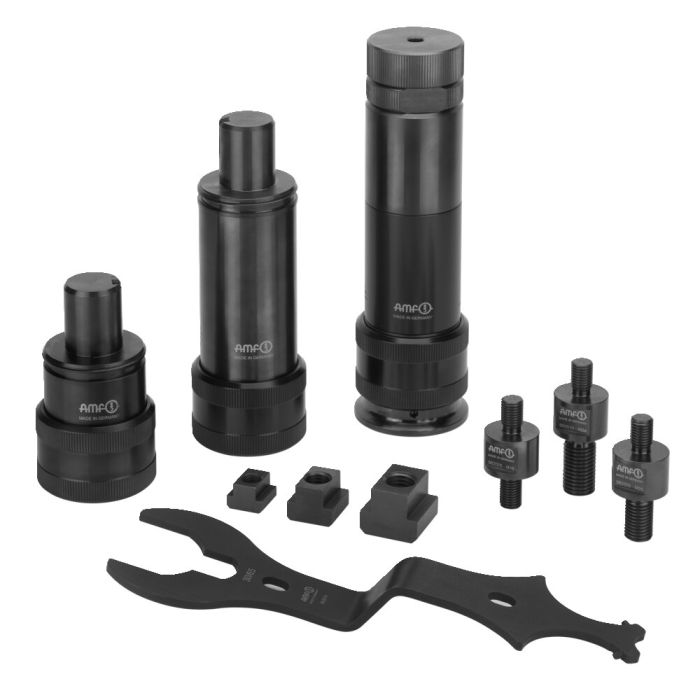

Screw jack, modular
Application:
Can be used on T-slots and grid plates by means of adapters, which are screwed in the base element. The individual elements are plugged together and connected by means of a threaded ring ensuring process reliability. The threaded ring must not be retightened under load. The insertion tool makes it possible to use the head and base elements as well as thread adapter.
Note:
- The modular design makes it possible to use different head and intermediate elements. Thus, a maximum height (with base element 6425FG or 6425FY) of 1626 mm with a permissible support force of 60 kN is possible. In addition, there is a risk of buckling.
- Do not adjust under load.
Advantage:
- The maximum height of 1626 mm is continuously adjustable and a height overlap is attainable (with base element 6425FG or 6425FY).
- The connecting points are protected against soiling.
- Improved handling by means of individual elements.
- Set-up time saving thanks to flexibility of parts.
- Storage optimisation.
| Order no. | 562000 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 306 |
| Max. height [mm] | 706 |
| Max. support force [kN] | 60 |
| Special features | Set |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Spacer element Nr. 562003 Extension of the modular screw jack, height 100 mm, support height 150-166,5 mm
- Screw jack element with acme thread and base element 6425FB Nr. 562002 Centring hole diameter 12 mm, height 306-406 mm
