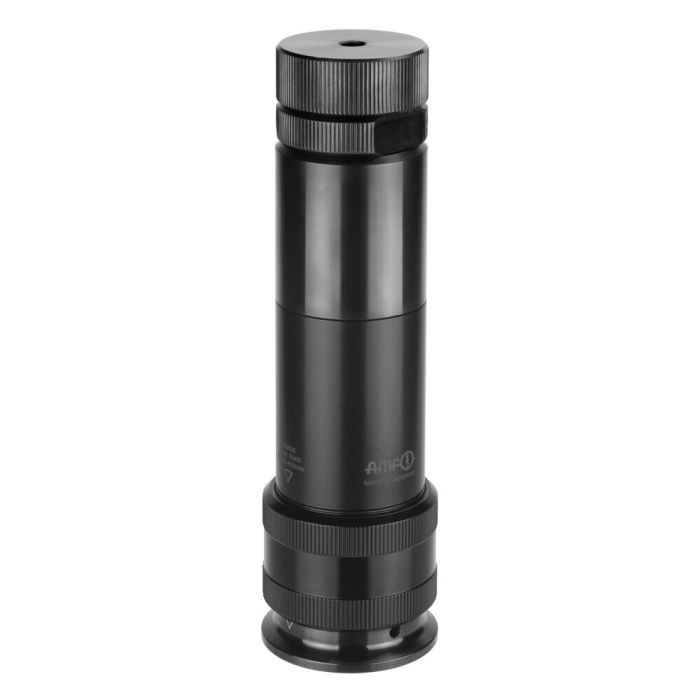

Screw jack element with acme thread and base element 6425FB
Centring hole diameter 12 mm, height 306-406 mm
Order no.
562002
Application:
Can be used on T-slots and grid plates by means of adapters, which are screwed in the base element. The individual elements are plugged together and connected by means of a threaded ring ensuring process reliability. The insertion tool makes it possible to use the locknut and base element as well as the thread adapter.
Note:
- The use as a head element in the screw jack modular makes a maximum height of 1626 mm with a permissible support force of 60 kN possible. In addition, there is a risk of buckling.
- Do not adjust under load.
Advantage:
- Can be used modularly.
| Order no. | 562002 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 306 |
| Max. height [mm] | 406 |
| Max. support force [kN] | 60 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Insertion tool Nr. 562014 Makes it possible to use the head and base elements of the screw jack modular as well as thread adapter
Similar products
- Height adjustment jack with fine thread and base element 6425FB Nr. 562001 Height 210-330 mm, max. support force 35 kN
