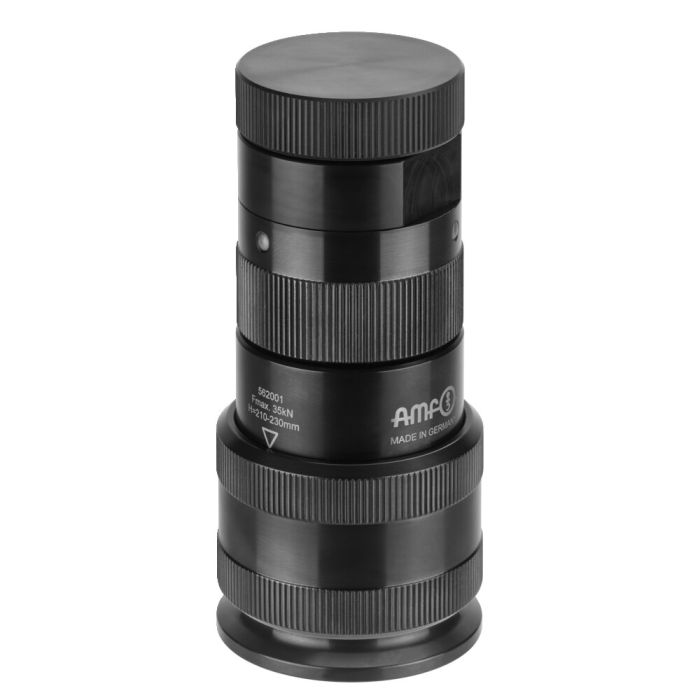

Height adjustment jack with fine thread and base element 6425FB

Application:
Can be used on T-slots and grid plates by means of adapters, which are screwed into the base element. The bearings can be adjusted with an angle of +/- 3 °.

Note:
- maximum height 330 mm with the bearing with +/- 3° angle function 6425AB, 6425AG, 6425AP
- maximum height 1626 mm with the fixed bearing without angle function 6425AGF
- The bearings are retained by magnets
- Bearings (smooth, spherical, point) can be replaced

Advantage:
- The height adjustment jack can be adjusted up to a support height of max. 330 mm under load.
- Used as an extra support point to prevent sagging and vibration of the workpiece.
- Mounted directly under a clamping point, distortion of the workpiece is prevented.
- Compensation of large workpiece tolerances (castings and forgings).
- For use in horizontal and vertical clamping.

* maximum attainable height with an spacer element 6425Z-100 is 330 mm
