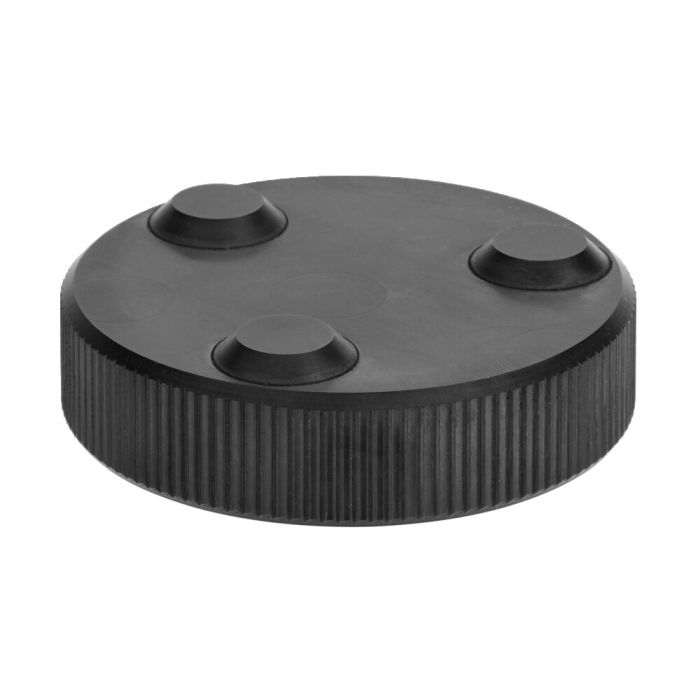

Bearing, point
For the support element 6425A-230, ⌀ 75 mm, height 24,7 mm
Order no.
562013
Application:
- Interchangeable bearing for the support element 6425A-230.
Advantage:
- Compensation of large workpiece tolerances (castings and forgings).
- For use in horizontal and vertical clamping, since secured by magnet and cylinder pin.
- The bearings can be adjusted with an angle of + / - 3°.
| Order no. | 562013 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 24.7 |
| Max. height [mm] | 24.7 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Height adjustment jack with fine thread and base element 6425FB Nr. 562001 Height 210-330 mm, max. support force 35 kN
