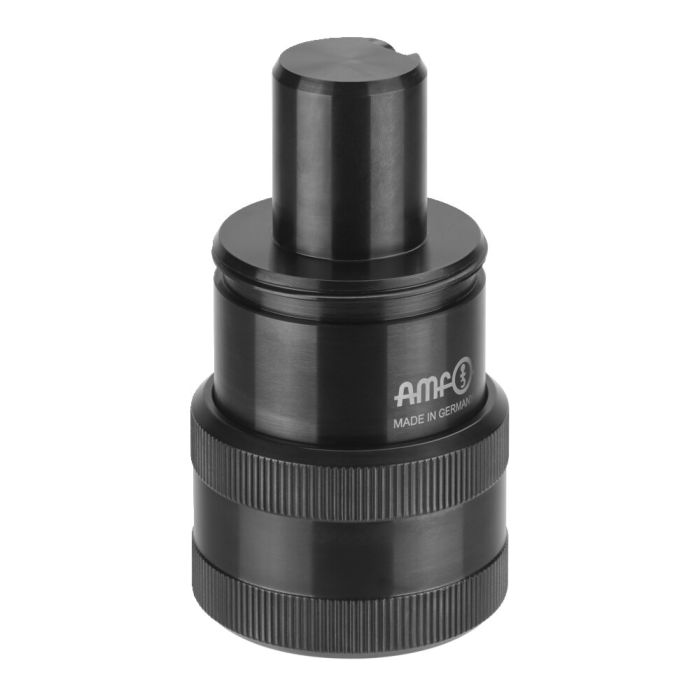

Spacer element
Application:
- As extension of the modular screw jack to achieve the maximum permitted support height of 1626 mm (with base element 6425FG or 6425FY).
Note:
- The use as an intermediate element in the screw jack modular makes a maximum height of 1626 mm with a permissible support force of 60 kN possible. In addition, there is a risk of buckling.
- Do not adjust under load.
Advantage:
- The maximum height of 1626 mm is continuously adjustable and a height overlap is attainable.
- The connecting points are protected against soiling.
- Improved handling by means of individual elements.
- Set-up time saving thanks to flexibility of parts.
- Storage optimisation.
| Order no. | 562003 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 100 |
| Max. height [mm] | 100 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Screw jack element with acme thread and base element 6425FB Nr. 562002 Centring hole diameter 12 mm, height 306-406 mm
- Insertion tool Nr. 562014 Makes it possible to use the head and base elements of the screw jack modular as well as thread adapter
- Spacer element Nr. 562004 Extension of the modular screw jack, height 300 mm, support height 350-366,5 mm
