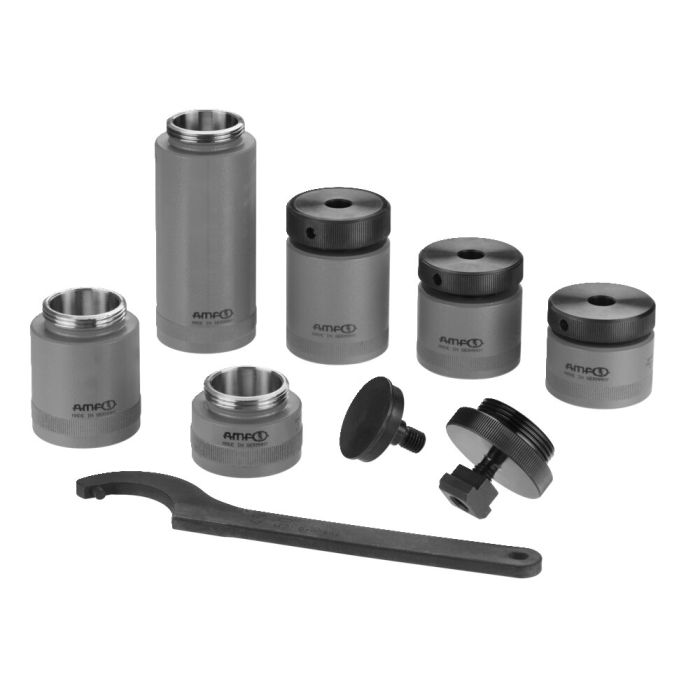

Screw jack set
Application:
The modular design allows the use of various screw jack intermediate and base elements, which are screwed together using the thread.
The individual elements are fixed in place process safe using a hook spanner. A maximum height of 285 mm can be achieved with this set.
Note:
Maximum achievable height of 422 mm with a permissible support force of 100 kN, above this there is a risk of buckling. Do not adjust under load.
Advantage:
- Maximum height of 422 mm achievable with additional intermediate elements
- Improved handling by means of individual elements
- Set-up time saving thanks to flexibility of parts
- storage optimisation
| Order no. | 569432 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 42 |
| Max. height [mm] | 285 |
| Special features | Set |
