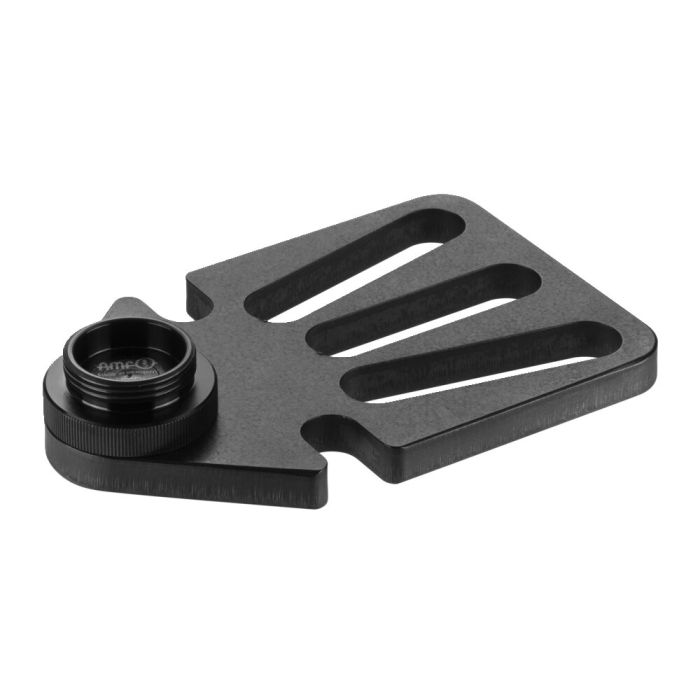

Base element slot
Size M38x2, ⌀ 50 mm, height 22 mm
Order no.
569387
Application:
The base elements can be used on T-slots and grid plates.
Screw jack elements in sizes 52/70/100 can be mounted directly onto the base elements or spacer elements.
Advantage:
- Enables variable positioning on the machine table.
- The threaded interface allows the base element to be replaced easily on the modular screw jack.
| Order no. | 569387 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 22 |
| Max. height [mm] | 22 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw jack with flat support Nr. 72405 Size 70, centring hole Ø12 mm / M10, height 50-70 mm, ⌀ 50 mm
-
