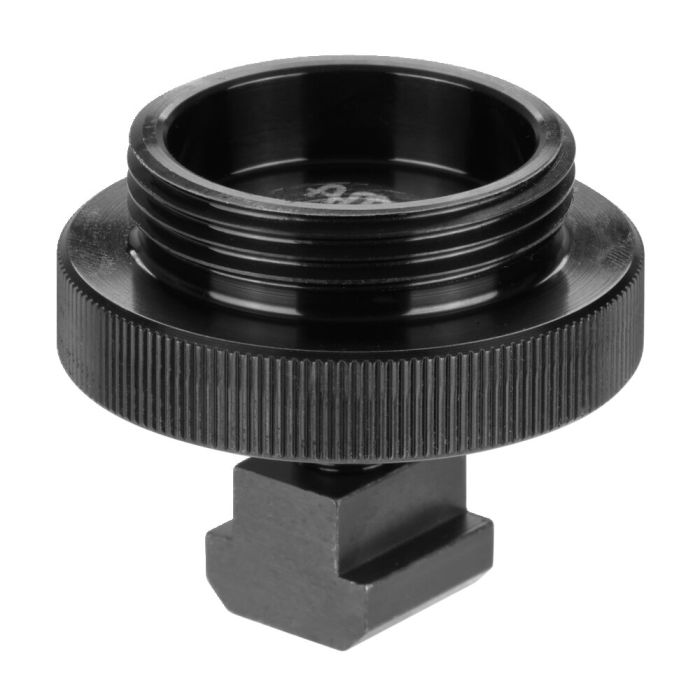

Base element
Size M16x18, slot 18 mm, ⌀ 50 mm, height 10 mm
Order no.
569386
Application:
The base elements can be used on T-slots and grid plates.
Screw jack elements in sizes 52/70/100 can be screwed directly onto the base elements or spacer elements.
Advantage:
By using the 6400FB base elements, the 6400 modular screw jack can be bolted process safe horizontally and vertically. For this purpose, the base element can be fastened in T-slots using the nut for T-slots supplied. It is also possible to screw directly onto breadboard plates or fixture plates.
| Order no. | 569386 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 10 |
| Max. height [mm] | 10 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw jack with flat support Nr. 72389 Size 52, centring hole Ø12 mm / M10, height 42-52 mm, ⌀ 50 mm
Similar products
