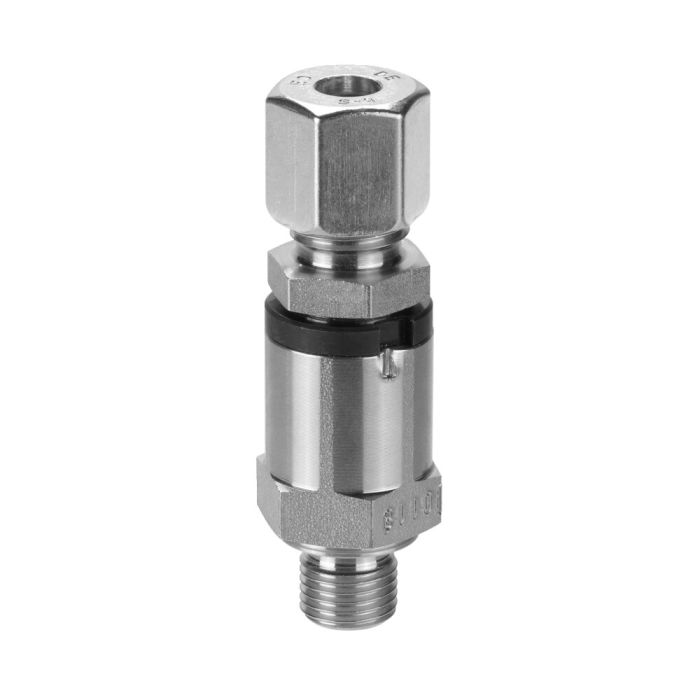

Axial Swivel Joint, single passage
Max. operating pressure 400 bar, nominal bore 4, connections inputs/outputs 1/1
Order no.
69088
Design:
Steel galvanized and yellow passivated. With union nut and cutting ring.
Application:
Rotary couplings are used to supply hydraulic oil to systems which can be rotaded and swivelled.
Note:
Please observe max. operating pressure and max. rpm. Thread G1/4 is sealed by means of a sealing edge according to DIN 3852 Part 2, form B.
| Order no. | 69088 |
|---|---|
| Product type | Rotary coupling |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread, Pipe |
