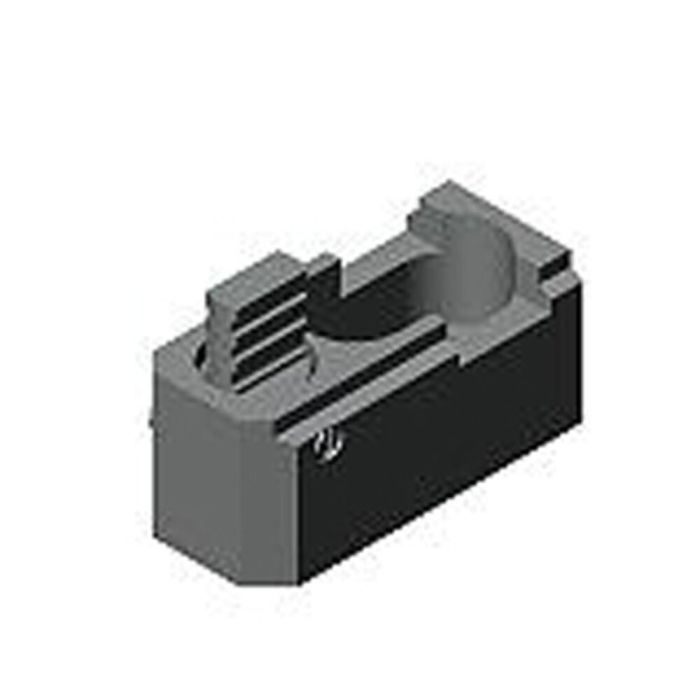

Base element, clamp-swivelling
Screw M16
Order no.
78485
Application:
With this element the setting of a clamping point in relation to the grid is very flexible. It can be displaced sideways by 0.4 x grid pitch, and in addition a built-up clamping tower can be swung through 45° from the axis of the body.
| Order no. | 78485 |
|---|---|
| Type | 16 |
