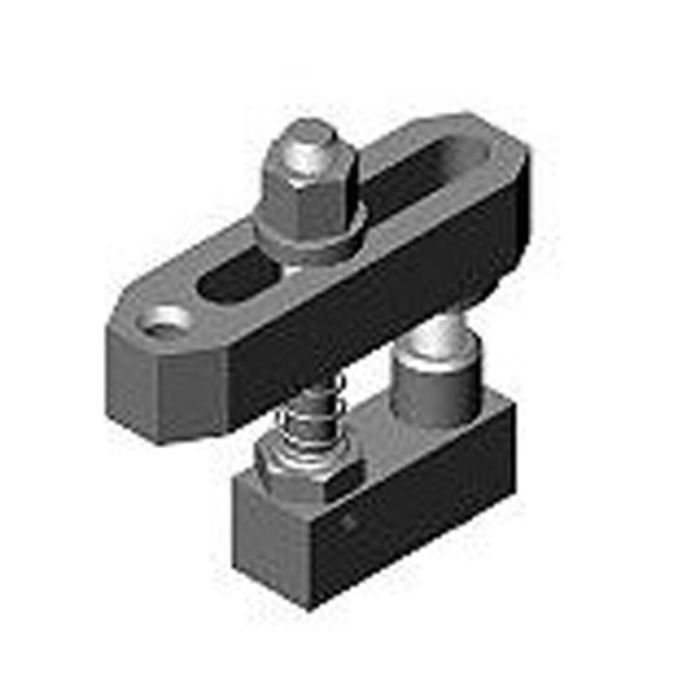

Clamp element, mechanical
Clamping range 60-96 mm (Type 16)
| Order no. | Article no. | A x B x C | B1 | E | F | G | H | Weight
[g] | Availability | Your Price |
| 77669 | 7110M-16-1 | 30x30x78 | 40 | 142 | 30 | M16 | 60-96 | 1650 | | |
| 79319 | 7110M-12-1 | 25x25x65 | 30 | 110 | 20 | M12 | 48-78 | 800 | | |
| 88443 | 7110M-20-1 | 40x40x120 | 50 | 200 | 40 | M20 | 80-128 | 4100 | | |
| | | | | | | | | | |
| Order no. | H1 | I | k | L | N | SW1 | SW2 |
| 77669 | 145 | 14 | 9-50 | 50 | 13 | 24 | 27 |
| 79319 | 112 | 12,5 | 5-35 | 40 | 10 | 19 | 22 |
| 88443 | 203 | 20 | 12-60 | 80 | 17 | 30 | 36 |
| | | | | | | |
Note:
Accessories for clamp element No. 7110M-**-1 are No. 7110GL, 7110K, 7110D/DM, 7110DS, 7110DK/DF, 7110DH/DI and 7110DV.
More Information | Order no. | 77669 |
|---|
| Operating mode | Mechanical |
|---|
| Type | 16 |
|---|
| Max. height [mm] | 96 |
|---|
| Min. height [mm] | 60 |
|---|
